250526353401

BUSH (REVERSE IDLER GEAR)

250526353401

—

885426041612

SYNCHRO KIT GBS 40 CONSISTING OF :

885426041612

—

1

DRIVE SHAFT (6.34)

250526257904

—

2

COMPRESSION SPRING

3219931201

—

3

CLAMPING PLATE

3212620073

—

4

CYLINDRICAL ROLLER BEARING

0009811201

—

5

SNAP RING 2.73 MM THICK

250526204303

—

5

SNAP RING 2.68 MM THICK

250526204302

—

5

SNAP RING 2.93 MM THICK

250526204307

—

5

SNAP RING 2.83 MM THICK

250526204305

—

5

SNAP RING 2.78 MM THICK

250526204304

—

5

SNAP RING 2.88 MM THICK

250526204306

—

6

FOUR POINT BALL BEARING

250526203106

—

7

SPACER ON DRIVE SHAFT

250726258601

—

8

LOCK NUT LH THREAD

3122621172

—

9

ROLLER CAGE (31MM LONG)

250526203118

—

10

MAIN SHAFT (W/O GROOVE)

250526207903

—

11

PRESSURE SPRING

3129931701

—

12

PIN ON MAIN SHAFT

3212620374

—

13

BUTTING RING 7.55 MM THICK

FOR SELECTION

3212622962

—

13

BUTTING RING 7.60 MM THICK

FOR SELECTION

3212620662

—

13

BUTTING RING 7.65 MM THICK

FOR SELECTION

3212623062

—

13

BUTTING RING 7.70 MM THICK

FOR SELECTION

3212620762

—

13

BUTTING RING 7.75 MM THICK

FOR SELECTION

250526208613

—

13

BUTTING RING 7.25 MM THICK

FOR SELECTION

250526208611

—

13

BUTTING RING 7.80 MM THICK

FOR SELECTION

3212622562

—

13

BUTTING RING 7.85 MM THICK

FOR SELECTION

250526208614

—

13

BUTTING RING 7.90 MM THICK

FOR SELECTION

3212622662

—

13

BUTTING RING 7.95 MM THICK

FOR SELECTION

250526208615

—

13

BUTTING RING 8.00 MM THICK

FOR SELECTION

3212622762

—

13

BUTTING RING 7.50 MM THICK

FOR SELECTION

3212620562

—

13

BUTTING RING 7.45 MM THICK

FOR SELECTION

3212622862

—

13

BUTTING RING 7.40 MM THICK

FOR SELECTION

3212620462

—

13

BUTTING RING 7.35 MM THICK

FOR SELECTION

250526208612

—

13

BUTTING RING 7.30 MM THICK

FOR SELECTION

3212621762

—

13

BUTTING RING 7.20 MM THICK

FOR SELECTION

3212621862

—

13

BUTTING RING 7.15 MM THICK

FOR SELECTION

250526208610

—

13

BUTTING RING 7.10 MM THICK

FOR SELECTION

3212621962

—

13

BUTTING RING 7.05 MM THICK

FOR SELECTION

250526208609

—

13

BUTTING RING 7.00 MM THICK

FOR SELECTION

3212622062

—

13

BUTTING RING 6.95 MM THICK

FOR SELECTION

250526208608

—

13

BUTTING RING 6.90 MM THICK

FOR SELECTION

3212622162

—

14

SYNCHRONISING RING

3222620134

—

16

SYNCHRONISING SLEEVE 4TH & 5TH

250530155403

—

17

COMP. SPRING

—

18

RETENTION PIN 4/5, 2/3

RETENTION

—

18

RETENTION PIN 4/5, 2/3

RETENTION

—

19

CARRIER 4/5 & 2/3

CARRIER

—

20

SYNCHRONISING CONE

250526203802

—

20

SYNCHRONISING CONE

250526203802

—

20

SYNCHRONISING CONE

250526203802

—

21

SHIFTING SLEEVE

3212620823

—

22

ASSY. HELICAL GEAR 4TH SPEED

250526200135

—

23

DOUBLE ROW NEEDLE CAGE

250526203123

—

24

COLLAR BUSHING 44.5 MM LONG (FOR THIRD SPEED GEAR)

FOR SELECTION

3222624050

—

24

COLLAR BUSHING 44.6 MM LONG (FOR THIRD SPEED GEAR)

FOR SELECTION

3222624150

—

25

DOUBLE ROW ROLLER CAGE

250526203124

—

25

DOUBLE ROW ROLLER CAGE

250526203124

—

26

ASSY. HELICAL GEAR 3RD SPEED

250526200118

—

28

SYNCHRONISING SLEEVE 2/3

3222620435

—

29

SHIFTING SLEEVE

3212620823

—

30

HELICAL GEAR 2ND SPEED

3222620112

—

32

REVERSE GEAR ON MAIN SHAFT

3222630333

—

33

CARRIER 4/5 & 2/3

CARRIER

—

34

SHIFTER SLEEVE 1ST SPEED

3212620723

—

35

COLLAR BUSHING 47.7 MM LONG

250530153406

—

35

COLLAR BUSHING 47.2 MM LONG

250530153401

—

35

COLLAR BUSHING 47.3 MM LONG

250530153402

—

35

COLLAR BUSHING 47.4 MM LONG

250530153403

—

35

COLLAR BUSHING 47.5 MM LONG

250530153404

—

35

COLLAR BUSHING 47.6 MM LONG

250530153405

—

35

COLLAR BUSHING 47.8 MM LONG

250530153407

—

35

COLLAR BUSHING 47.9 MM LONG

250530153408

—

36

CYLINDRICAL ROLLER 4X8

250526203001

—

37

GEAR WHEEL 1ST SPEED

250530155401

—

38

GEAR SPEEDOMETER DRIVE

3522640130

—

39

SHAFT (SPEEDO DRIVE)

250526207902

—

40

GEAR SPEEDOMETER DRIVE

3522640130

—

41

COUPLING FLANGE (8 HOLES)

3222620045

—

42

HEX. NUT

3222620072

—

43

COUNTER SHAFT (WITH PTO PROVISION)

250530147901

—

44

TWIN GEAR (COUNTER SHAFT) (2/3)

250526305402

—

45

4TH GEAR (ON COUNTER SHAFT)

250526305401

—

46

CONSTANT MESH GEAR (ON COUNTER SHAFT) (6.34)

250526305407

—

47

CIRCLIP A 52X2.5

14550699053

—

48

TAPER ROLLER BEARING

250526303104

—

49

REVERSE IDLER GEAR WITH BUSH

250526350102

—

51

REVERSE IDLER GEAR SHAFT

250530177901

—

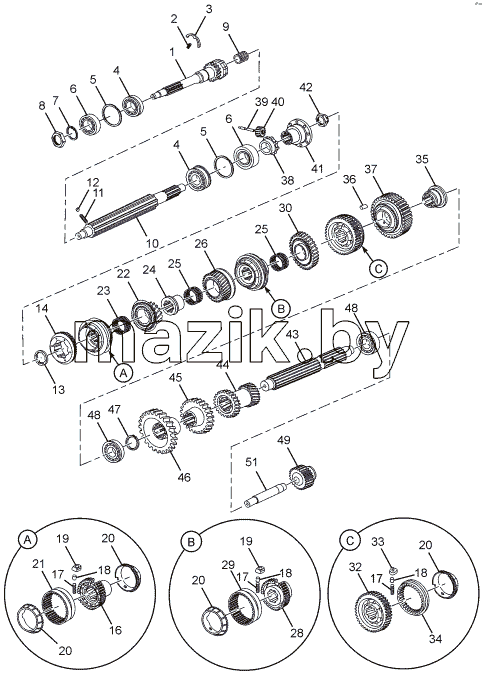

Каталог запасных частей к технике: Tata LPT 613 LHD EURO II. GEAR SHAFT AND GEAR
