250526258201

OIL SLINGER (FRONT COVER)

250526258201

—

3212610333

COVER (FOR PTO APPLICATION)

3212610333

—

250526405303

GASKET (FOR COVER)

250526405303

—

250526713407

STOPPER PIECE CHECK PLATE

250526713407

—

250526713403

SUPPORT PIECE CHECK PLATE

250526713403

—

250526000101

GEAR BOX GASKET KIT CONSISTING OF :

250526000101

—

885426051613

OVERHAULING KIT - GB 40 CONSISTING OF :

885426051613

—

OIL SEAL

—

OIL SEAL

—

SHIM

—

SHIM

—

SHIM

—

SHIM

—

SHIM

—

GASKET

—

GASKET

—

GASKET

—

GASKET

—

HEX COLLAR NUT

—

HEX NUT

—

PRESSURE SPRING

—

PIN MAIN SHAFT

—

1

ASSY GBS 40-5/6.34,W/6BCF,PTO PROVISION .FR.COMP

250526040180

—

2

GEAR BOX HOUSING (6.34 RATIO)

250526103724

—

3

CYLINDRICAL PIN 10 H 8X20

13050909209

—

4

PLUG OIL FILLING

0009970006J

—

5

MAGNETIC DRAIN PLUG (HEX HEAD TYPE)

250626107203

—

6

GASKET, FRONT COVER LOWER

250530145301

—

6

GASKET FRONT COVER LOWER

—

7

FRONT COVER LOWER

250530144701

—

11

GASKET (FR. COVER TOP TO HSG.)

250526255301

—

11

GASKET FRONT COVERUPPER

—

12

GEAR BOX HOUSING COVER FRONT TOP

250530134701

—

15

OIL SEAL

250526257808

—

16

BUTTING RING 2.90 MM THICK

FOR SELECTION

250530138601

—

16

BUTTING RING 2.95 MM THICK

FOR SELECTION

250526258601

—

16

BUTTING RING 3.00 MM THICK

FOR SELECTION

250530138602

—

16

BUTTING RING 3.05 MM THICK

FOR SELECTION

250526258602

—

16

BUTTING RING 3.10 MM THICK

FOR SELECTION

250530138603

—

16

BUTTING RING 3.15 MM THICK

FOR SELECTION

250526258603

—

16

BUTTING RING 3.20 MM THICK

FOR SELECTION

250530138604

—

16

BUTTING RING 3.25 MM THICK

FOR SELECTION

250526258604

—

16

BUTTING RING 3.30 MM THICK

FOR SELECTION

250530138605

—

16

BUTTING RING 3.35 MM THICK

FOR SELECTION

250526258605

—

16

BUTTING RING 3.40 MM THICK

FOR SELECTION

250530138606

—

16

BUTTING RING 3.45 MM THICK

FOR SELECTION

250526258606

—

16

BUTTING RING 3.50 MM THICK

FOR SELECTION

250530138607

—

16

BUTTING RING 3.60 MM THICK

FOR SELECTION

250530138608

—

17

GEAR CASE COVER REAR

250530153701

—

18

OIL SEAL

250526207803

—

19

ADAPTER

3212610031

—

20

ASSY. THREADED BUSH

3212600086

—

21

PLUG SPEEDO DRIVE

1532640055

—

23

SHIM 0.05 MM THICK

FOR SELECTION, AR

3122831752

—

23

SHIM 0.1 MM THICK

FOR SELECTION, AR

3122831052

—

23

SHIM 0.2 MM THICK

FOR SELECTION, AR

3122831152

—

23

SHIM 0.4 MM THICK

FOR SELECTION, AR

3122831252

—

23

SHIM 0.8 MM THICK

FOR SELECTION, AR

3122832152

—

27

GASKET (GEAR CASE COVER REAR)

3522610780

—

27

GASKET REAR COVER

—

30

GEAR CASE COVER TOP (LOWER HALF)

250526713755

—

31

GASKET, FRONT COVER LOWER

250530145301

—

31

GASKET TOP COVER

—

32

STUD

250530128801

—

33

PIN SWING LEVER

250526716701

—

37

PRESSURE RELIEF VALVE

266835150102

—

38

THRUST PIN (REVERSE INDICATOR SWITCH)

250530116701

—

39

PRESSURE SPRING (REVERSE INDICATOR SWITCH)

3129934201

—

40

REVERSE INDICATOR SWITCH

265454500134

—

41

SWING LEVER - 1ST SPEED

250526705105

—

42

WASHER (SWING LEVER)

250530129201

—

43

PRESSURE PIECE FOR CHECK PLATE

250526713409

—

44

PRESSURE SPRING FOR PRESSURE PIECE

250526718702

—

45

SLOTTED PLUG

3219970103

—

46

INTERLOCKING PIN

250526713410

—

47

PRESSURE SPRING FOR INTERLOCKING PIN

3219930601

—

48

SEALING PLUG M 24X1.5

16082502401

—

49

ASSY. CHECK PLATE

3212600846

—

54

SELECTOR SHAFT FOR FIRST SPEED

3212650805

—

55

SELECTOR SHAFT (2/3)

3212651805

—

56

SELECTOR SHAFT (4/5)

3212651905

—

57

SELECTOR SHAFT (FOR REVERSE GEAR)

3222650305

—

58

GEAR SHIFT DOG (FOR FIRST GEAR)

3222650123

—

59

SELECTOR FORK (2/3)

3212651202

—

60

SELECTOR FORK (4/5)

250526515102

—

61

SELECTOR FORK (FOR 1ST SPEED GEAR)

3212651301

—

62

SELECTOR FORK (FOR REVERSE GEAR)

250526515101

—

63

PRESSURE SPRING

3129931001

—

64

STEEL BALL 11 MM DIA.

15950101102

—

65

CLAMP (SELECTOR SHAFT TO GEAR BOX HOUSING)

3122651036

—

66

LOCKING PLATE (SELECTOR SHAFT TO GEAR BOX HOUSING) TOP COVER

3129940332

—

67

COVER TOP (UPPER HALF)

250526713756

—

68

NEEDLE BEARING

250726713105

—

69

SHIFTER FINGER

250526705104

—

70

SELECTOR & SHIFTER SHAFT

250526707909

—

73

OIL SEAL

17061602518

—

74

SCRAPER RING

250726717803

—

75

ASSY. SHIFTING LEVER

250726706013

—

76

CAP

250526718222

—

77

BELLOW

250526717701

—

78

HOSE CLIP 25

14270202501

—

79

GASKET (BETWEEN UPPER & LOWER HALF)

250626715301

—

83

SLIDING KEY GASKET KIT

3212650849

—

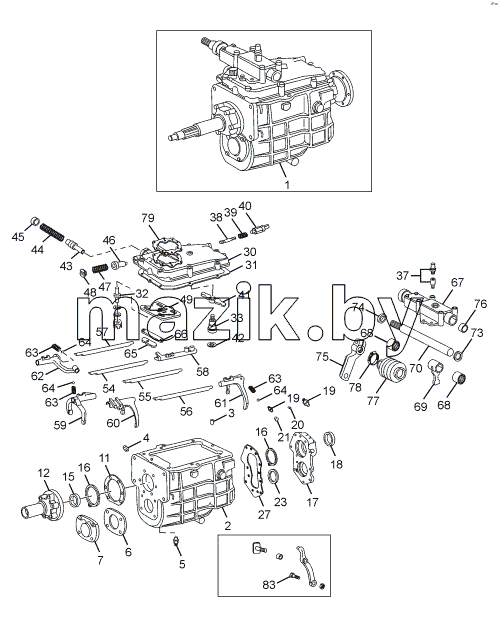

Каталог запасных частей к технике: Tata LPT 613 LHD EURO II. GEAR BOX HOUSING
