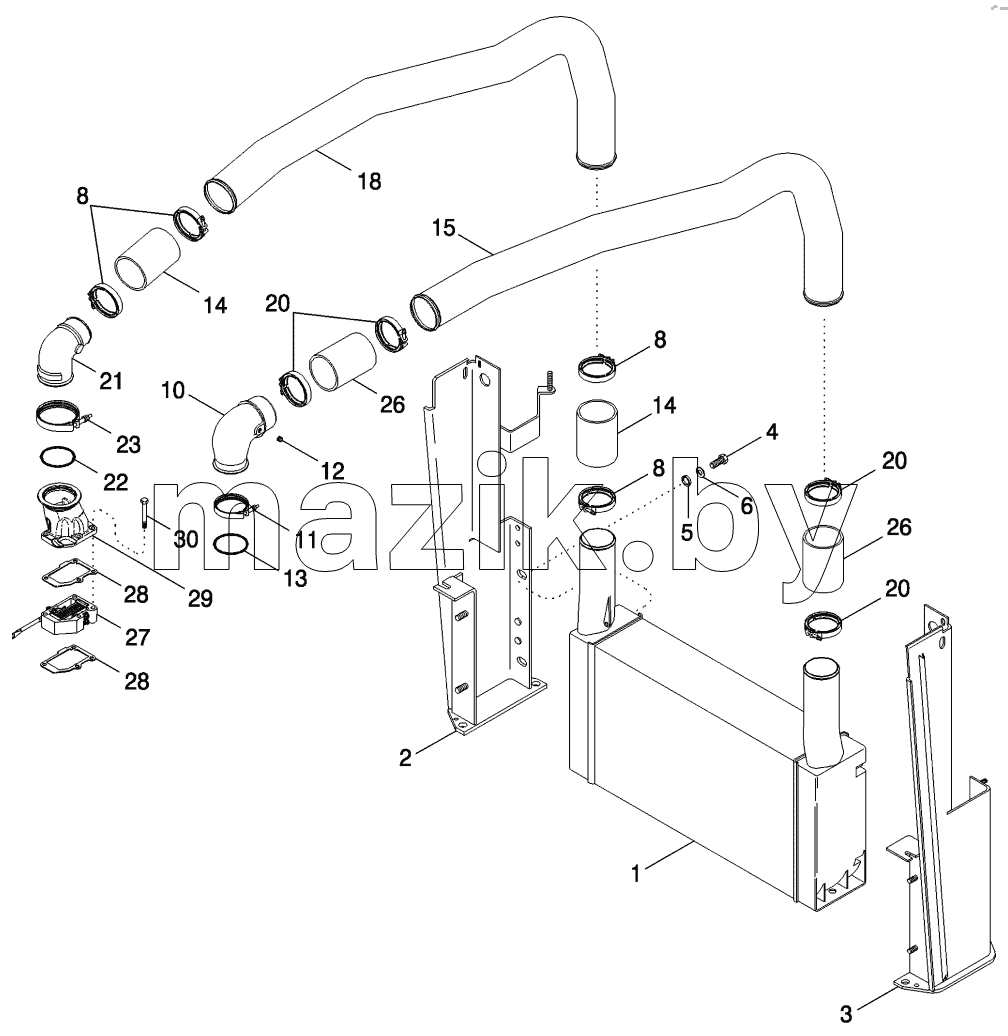

Каталог запасных частей к технике: Cummins 310. AFTERCOOLER

← AIR INDUCTION SYSTEM - STANDARD DUTY EXHAUST SYSTEM →

№ п/п

Название по каталогу

Кат. номер

Наименование на сайте

Ост.

Цена, BYN

COOLER

Air to Air

87307279

—

SUPPORT

Left Hand

87621948

—

SUPPORT

Right Hand

87621960

—

BOLT

Hex, M10x25, 8.8, Full Thd,

614-10025

—

TUBE SPACER

87456528

—

WASHER

7/16dmx1 1/4dmx.134dm,

495-81148

—

CLAMP

Hose

352198A1

—

PIPE

J918685

—

O-RING

J883284

—

PLUG

J008465

—

CLAMP

J069053

—

HOSE

Air to Air, Cold Side

87454331

—

TUBE

Turbo to Cooler, BTW Z7RW01293 & Z7RZ02632

87521309

—

TUBE

Turbo to Cooler, ASN Z7RZ02632

87602983

—

TUBE

Turbo to Cooler, BSN Z7RW01293

87454346

—

TUBE

Cooler to Intake Manifold, BSN Z7RW01293

87346132

—

TUBE

Cooler to Intake Manifold, BTW Z7RW01293 & Z7RZ02632

87521022

—

TUBE

Cooler to Intake Manifold, ASN Z7RZ02632

87603073

—

CLAMP

364751A1

—

ELBOW

87341882

—

SEAL

87434592

—

CLAMP

87434593

—

HOSE

Air to Air

377592A1

—

HEATER

Intake Air

87335271

—

GASKET

Connection

87335272

—

CONNECTOR

MULTIPOLE,

87340026

—

BOLT

Hex Flg, M8x80, 8.8,

845-8080

—

−
