10

Output cover

4149.203.023

—

14

Screw plug

M18X1,5

0636.305.067

—

14

Sealing ring

18X22

0634.801.057

—

20

Shaft seal

90X125X12

0750.111.018

—

20

Grease

KLASSE A

0750.199.019

—

50

Gasket

4139.301.618

—

60

Hexagon bolt

M10X55

0636.010.378

—

60

Washer

0630.001.048

—

66

Hexagon bolt

M10X60

0636.010.071

—

66

Washer

0630.001.048

—

72

Hexagon bolt

M10X60

0636.010.071

—

72

Washer

0630.001.048

—

78

Hexagon bolt

M10X60

0636.010.071

—

78

Washer

0630.001.048

—

84

Hexagon bolt

M10X55

0636.010.378

—

84

Washer

0630.001.048

—

90

Hexagon bolt

M10X60

0636.010.071

—

90

Washer

0630.010.026

—

96

Hexagon bolt

M10X60

0636.010.071

—

96

Washer

0630.010.026

—

102

Hexagon bolt

M10X60

0636.010.071

—

102

Washer

0630.010.026

—

108

Hexagon bolt

M10X60

0636.010.071

—

108

Washer

0630.010.026

—

114

Hexagon bolt

M10X75

0636.010.379

—

114

Washer

0630.001.048

—

120

Hexagon bolt

M10X55

0636.010.378

—

120

Washer

0630.001.048

—

126

Hexagon bolt

M10X55

0636.010.378

—

126

Washer

0630.001.048

—

132

Hexagon bolt

M10X60

0636.010.071

—

132

Washer

0630.010.026

—

138

Hexagon bolt

M10X60

0636.010.071

—

138

Washer

0630.010.026

—

144

Hexagon bolt

M10X60

0636.010.071

—

144

Washer

0630.010.026

—

150

Hexagon bolt

M10X60

0636.010.071

—

150

Washer

0630.010.026

—

156

Hexagon bolt

M10X55

0636.010.378

—

156

Washer

0630.001.048

—

160

Hexagon bolt

M10X55

0636.010.378

—

160

Washer

0630.001.048

—

162

Hexagon bolt

M10X75

0636.010.379

—

162

Washer

0630.001.048

—

166

Hexagon bolt

M10X55

0636.010.378

—

166

Washer

0630.001.048

—

200

Planetary drive

KPL.

4149.203.016

—

200.110

Planet carrier

KPL.

4149.203.014

—

200.120

Bearing pin

ENTHALT.IN 4139 333 5922

4139.333.593

—

200.130

Needle cage

30,0X40,0X16, 0 FA.INA

0735.320.480

—

200.130

Needle cage

30,0X40,0X15,8 FA.NTN

0735.321.461

—

200.140

Planet gear set

KPL. В OHRUNGSHONEN

4149.233.013

—

200.140

Planet gear set

KPL.

4139.203.136

—

200.150

Thrust washer

C0100140 4E10

4149.303.023

—

200.160

Slotpin

0501.315.917

—

200.200

Needle sleeve

18, 0X24,0X16, 0

0750.115.518

—

210

Spacing washer

A=7, 00 IN 0730 104 7792

0730.105.229

—

210

Spacing washer

A=6, 80 IN 0730 104 7792

0730.105.228

—

210

Spacing washer

A=6, 60 IN 0730 104 7792

0730.105.227

—

210

Spacing washer

A=6, 50 IN 0730 104 7792

0730.110.828

—

210

Spacing washer

A=6, 40 IN 0730 104 7792

0730.105.226

—

210

Spacing washer

A=6, 30 IN 0730 104 7792

0730.110.827

—

210

Spacing washer

A=6, 20 IN 0730 104 7792

0730.105.225

—

210

Spacing washer

А=6, 10 IN 0730 104 7792

0730.110.826

—

210

Spacing washer

А=6, 00 IN 0730 104 7792

0730.105.224

—

210

Spacing washer

А=5,90 IN 0730 104 7792

0730.109.936

—

210

Spacing washer

А=5,80 IN 0730 104 7792

0730.105.223

—

210

Spacing washer

А=5,70 IN 0730 104 7792

0730.109.935

—

210

Spacing washer

А=5,60 IN 0730 104 7792

0730.105.222

—

210

Spacing washer

А=5,50 IN 0730 104 7792

0730.109.934

—

210

Spacing washer

А=5,40 IN 0730 104 7792

0730.105.221

—

210

Spacing washer

А=5,30 IN 0730 104 7792

0730.109.933

—

210

Spacing washer

А=5,20 IN 0730 104 7792

0730.103.511

—

210

Spacing washer

А=5Д0 IN 0730 104 7792

0730.109.932

—

210

Spacing washer

А=5,00 IN 0730 104 7792

0730.103.512

—

210

Spacing washer

А=4,90 IN 0730 104 7792

0730.109.931

—

210

Spacing washer

А=4,80 IN 0730 104 7792

0730.103.513

—

210

Spacing washer

А=4,70 IN 0730 104 7792

0730.109.930

—

210

Spacing washer

А=4,60 IN 0730 104 7792

0730.103.514

—

210

Spacing washer

А=4,50 IN 0730 104 7792

0730.109.929

—

210

Spacing washer

А=4,40 IN 0730 104 7792

0730.103.515

—

210

Spacing washer

А=4,30 IN 0730 104 7792

0730.109.928

—

210

Spacing washer

А=4,20 IN 0730 104 7792

0730.103.516

—

210

Spacing washer

А=4,10 IN 0730 104 7792

0730.109.927

—

210

Spacing washer

А=4,00 IN 0730 104 7792

0730.103.517

—

210

Spacing washer

А=3,90 IN 0730 104 7792

0730.109.926

—

210

Spacing washer

А=3,80 IN 0730 104 7792

0730.103.518

—

210

Spacing washer

А=3,60 IN 0730 104 7792

0730.103.519

—

210

Spacing washer

35,1X58X3,4

0730.103.272

—

210

Spacing washer

А=3,20 IN 0730 104 7792

0730.103.273

—

210

Spacing washer

А=3,00 IN 0730 104 7792

0730.103.274

—

210

Spacing washer

А=2,80 IN 0730 104 7792

0730.103.275

—

210

Spacing washer

А=2,60 IN 0730 104 7792

0730.103.276

—

210

Spacing washer

A=2,40 IN 0730 104 7792

0730.103.277

—

210

Spacing washer

A=2,20 IN 0730 104 7792

0730.103.278

—

210

Spacing washer

A=2,00 IN 0730 104 7792

0730.103.279

—

210

Spacing washer

A=1,80 IN 0730 104 7792

0730.103.362

—

220

Tarollbearing

70,0X110,0X25,0

0750.117.625

—

222

Washer

A=3,00

0730.009.583

—

240

Toothed ring

Z6

4149.303.013

—

250

Washer

A=1,20 IN 0730 106 6652

0730.103.586

—

250

Washer

A=1,15 IN 0730 106 6652,C0100362 5B10

0730.008.869

—

250

Washer

A=1,10 IN 0730 106 6652

0730.103.587

—

250

Washer

A=1,05 IN 0730 106 6652

0730.106.668

—

250

Washer

A=1,00 IN 0730 106 6652

0730.103.588

—

250

Washer

A=0,95 IN 0730 106 6652

0730.106.667

—

250

Washer

A=0,90 IN 0730 106 6652

0730.106.666

—

250

Washer

A=0,85 IN 0730 106 6652,C0100362 5B10

0730.008.868

—

250

Washer

A=0,80 IN 0730 106 6652

0730.103.589

—

250

Washer

A=0,60 IN 0730 106 6652

0730.103.590

—

250

Washer

A=0,40 IN 0730 106 6652

0730.103.591

—

260

Tarollbearing

70,0X125,0X26, 2

0750.117.621

—

300

Output flange

KPL.AD=165 8XM16X1,5X45

4139.203.033

—

300.20

Hexagon bolt

M16X1,5X45

0736.020.126

—

310

Washer

4139.303.239

—

330

Hexagon bolt

M12X60

0636.011.641

—

356

Pulse sensor

0501.214.772

—

380

Indtransmitter

0501.314.432

—

0730.008.442

Washer

A=6, 00 IN 0730 008 4162

0730.008.442

—

0730.008.441

Washer

A=5,80 IN 0730 008 4162

0730.008.441

—

0730.008.440

Washer

A=5,60 IN 0730 008 4162

0730.008.440

—

0730.008.439

Washer

A=5,40 IN 0730 008 4162

0730.008.439

—

0730.008.438

Washer

A=5,20 IN 0730 008 4162

0730.008.438

—

0730.008.437

Washer

A=5,00 IN 0730 008 4162

0730.008.437

—

0730.008.436

Washer

A=4,80 IN 0730 008 4162

0730.008.436

—

0730.008.435

Washer

A=4,60 IN 0730 008 4162

0730.008.435

—

0730.008.434

Washer

A=4,40 IN 0730 008 4162

0730.008.434

—

0730.008.433

Washer

A=4,20 IN 0730 008 4162

0730.008.433

—

0730.008.432

Washer

A=4,00 IN 0730 008 4162

0730.008.432

—

0730.008.431

Washer

A=3,80 IN 0730 008 4162

0730.008.431

—

0730.008.430

Washer

A=3,60 IN 0730 008 4162

0730.008.430

—

0730.008.429

Washer

A=3,20 IN 0730 008 4162

0730.008.429

—

0730.008.428

Washer

A=3,00 IN 0730 008 4162

0730.008.428

—

0730.009.198

Washer

A=2,90 IN 0730 008 4162

0730.009.198

—

0730.008.427

Washer

A=2,80 IN 0730 008 4162

0730.008.427

—

0730.009.197

Washer

A=2,70 IN 0730 008 4162

0730.009.197

—

0730.008.426

Washer

A=2,60 IN 0730 008 4162

0730.008.426

—

0730.009.196

Washer

A=2,50 IN 0730 008 4162

0730.009.196

—

0730.008.425

Washer

A=2,40 IN 0730 008 4162

0730.008.425

—

0730.008.424

Washer

A=2,20 IN 0730 008 4162

0730.008.424

—

0730.009.195

Washer

A=2,10 IN 0730 008 4162

0730.009.195

—

0730.008.423

Washer

A=2,00 IN 0730 008 4162

0730.008.423

—

0730.009.194

Washer

A=1,90 IN 0730 008 4162

0730.009.194

—

0730.008.422

Washer

A=1,80 IN 0730 008 4162

0730.008.422

—

0730.009.193

Washer

A=1,70 IN 0730 008 4162

0730.009.193

—

0730.008.421

Washer

A=1,60 IN 0730 008 4162

0730.008.421

—

0730.009.192

Washer

A=1,50 IN 0730 008 4162

0730.009.192

—

0730.008.420

Washer

A=1,40 IN 0730 008 4162

0730.008.420

—

0730.009.191

Washer

A=1,30 IN 0730 008 4162

0730.009.191

—

0730.008.419

Washer

A=1,20 IN 0730 008 4162

0730.008.419

—

0730.008.418

Washer

A=1,00 IN 0730 008 4162

0730.008.418

—

0730.008.417

Washer

A=0,80 IN 0730 008 4162

0730.008.417

—

0736.101.359

Torx screw

M6X45 IN 0736 101 3632,C0100799 3210

0736.101.359

—

0634.313.016

O-ring

4X1,5

0634.313.016

—

400

Cable connect

KPL.ECOMAT 2 N-AB RET NEU

4149.206.102

—

410

Cover

INDUKTIVGEBER ABTRIEB

4149.303.024

—

420

O-ring

40X3

0634.316.248

—

430

Hexagon bolt

M6X22

0636.015.489

—

430

Washer

0630.001.076

—

440

Valve

KPL. MX295

4181.212.006

—

454

Screw plug

Ml 8X1,5

0636.305.067

—

454

Sealing ring

18X22

0634.801.057

—

464

Screw plug

Ml 8X1,5

0636.305.067

—

464

Sealing ring

18X22

0634.801.057

—

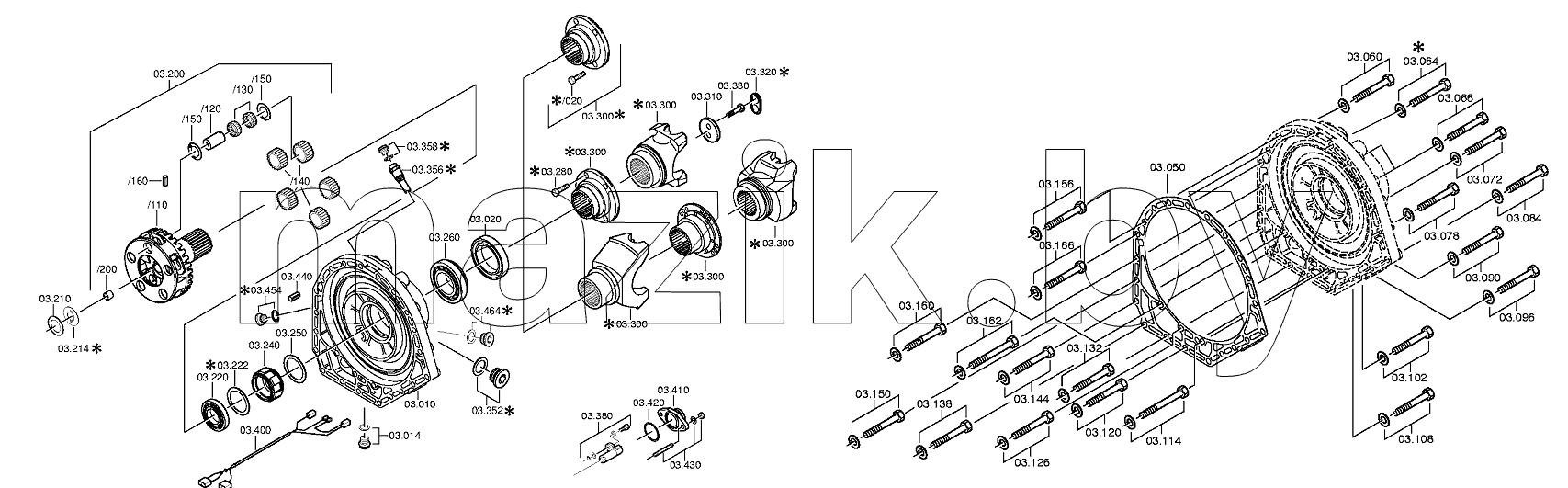

Каталог запасных частей к технике: King Long XMQ-6127J. OUTPUT
