1869910055

PIN MAIN BEARING SET

1869910055

—

253403114801

CYLINDRICAL PIN

253403114801

—

252303107802

SEALING RING HALF

252303107802

—

885403012523

KIT, CRANSHAFT SEALING RING HALF CONSISTING OF

885403012523

—

252703138603

SPACER (OIL SLINGER)

252703138603

—

252503138201

OIL SLINGER

252503138201

—

1

CRANKSHAFT STD (INTEGRAL)

253403107913

—

3

ASSY. FLYWHEEL WITH RING GEAR

253403110128

—

4

RING GEAR

253403115401

—

6

BALL BEARING

253403103102

—

7

LOCKING RING (IN CRANKSHAFT TO FIX THE BEARING)

3120310533

—

8

BOLT

3129900301

—

9

LOCKING PLATE

3129940232

—

10

CRANK SHAFT GEAR

3520520003

—

11

WOODRUFF KEY 8X13

13650510091

—

13

PULLEY-CRANKSHAFT

253403137016

—

14

THRUST SPACER

252303138603

—

15

LOCK (V. DAMPER)

252303133202

—

16

SET OF MAIN BEARING W/O THRUST WASHER STD CONSISTING OF :

885403372534

—

16

SET OF MAIN BEARING W/O THRUST WASHER RS I CONSISTING OF :

885403392534

—

16

SET OF MAIN BEARING W/O THRUST WASHER RS II CONSISTING OF :

885403402534

—

16

SET OF MAIN BEARING W/O THRUST WASHER RS IV CONSISTING OF :

885403422534

—

16

SET OF MAIN BEARING W/O THRUST WASHER RS III CONSISTING OF :

885403412534

—

17

MAIN BEARING UPPER STD

—

17

MAIN BEARING UPPER RS IV

—

17

MAIN BEARING UPPER RS III

—

17

MAIN BEARING UPPER RS II

—

17

MAIN BEARING UPPER RS I

—

18

MAIN BEARING LOWER RS III

—

18

MAIN BEARING LOWER STD

—

18

MAIN BEARING LOWER STD

—

18

MAIN BEARING LOWERRS II

—

18

MAIN BEARING LOWER RS IV

—

19

SET OF THRUST WASHER RS I CONSISTING OF

885403502534

—

19

SET OF THRUST WASHER RS II CONSISTING OF

885403512534

—

19

SET OF THRUST WASHER STD CONSISTING OF

885403492534

—

20

THRUST WASHER UPPER HALF STD

—

20

THRUST WASHER UPPER HALF RS I

—

20

THRUST WASHER UPPER HALF RS II

—

21

THRUST WASHER LOWER HALF STD

—

21

THRUST WASHER LOWER HALF RS I

—

21

THRUST WASHER LOWER HALF RS II PISTON AND RING SET

THRUST WASHER LOWER HALF RS II

—

22

ASSY. CONNECTING ROD W/O BEARING

253403150110

—

23

CON ROD BUSH

3520381150

—

23

CON ROD BUSH SET STD CONSISTING OF :

885403522534

—

25

CONNECTING ROD BOLT (FULLY THREADED) CONNECTING ROD BEARINGS

252503153204

—

26

CON ROD BEARING RS IV

—

26

CON ROD BEARING RS III

—

26

CON ROD BEARING RS II

—

26

CON ROD BEARING STD

—

26

CON ROD BEARING RS I

—

27

CON ROD BEARING SET STD CONSISTING OF

885403432534

—

27

CON ROD BEARING SET RS I CONSISTING OF

885403452534

—

27

CON ROD BEARING SET RS II CONSISTING OF

885403462534

—

27

CON ROD BEARING SET RS III CONSISTING OF

885403472534

—

27

CON ROD BEARING SET RS IV CONSISTING OF

885403482534

—

28

PISTON STD

—

28

PISTON (STD-I DIA 96.900)M/s GIL BS-II

—

28

PISTON STD

—

29

DOUBLE TRAPEZE RING GR I

—

29

INTER.STEPPED KEYSTONE RING TOP

252503149964

—

30

NAPIER RING GR II

—

30

INTER STEPPED COMPRESSION RING

252503149965

—

31

ASSY.OIL CONTROL RING GROOVE III CONNECTING ROD

252503140355

—

31

ASSY. OIL CONTROL RING

—

32

PISTON PIN

—

32

PISTON PIN

—

32

PISTON PIN

—

33

CIRCLIP

—

33

CIRCLIP

—

33

CIRCLIP

—

35

SET OF BARE PISTON :(ESCORTS) CONSISTS OF

FOR VEHICLES AFTER JUNE 2007

253403990227

—

35

SET OF BARE PISTON 4SPTC STD EURO I & II (SLIPPER) CONSISTING OF :

SET B, OPTIONAL TO A , FOR VEHICLES UPTO MAY 2007

885403732534

—

35

SET OF BARE PISTON 4SPTC STD EURO I & II (NON SLIPPER) CONSISTING OF :

SET A, OPTIONAL TO B , FOR VEHICLES UPTO MAY 2007

885403682534

—

36

SET OF PISTON RING (GOETZE):4SP BS:II CONSISTS OF:

FOR VEHICLES AFTER JUNE 2007

253403990228

—

36

SET OF PISTON RINGS STD 4SPTC / 497TC EURO I & II CONSISTING OF :

FOR VEHICLES UPTO MAY 2007

885403742534

—

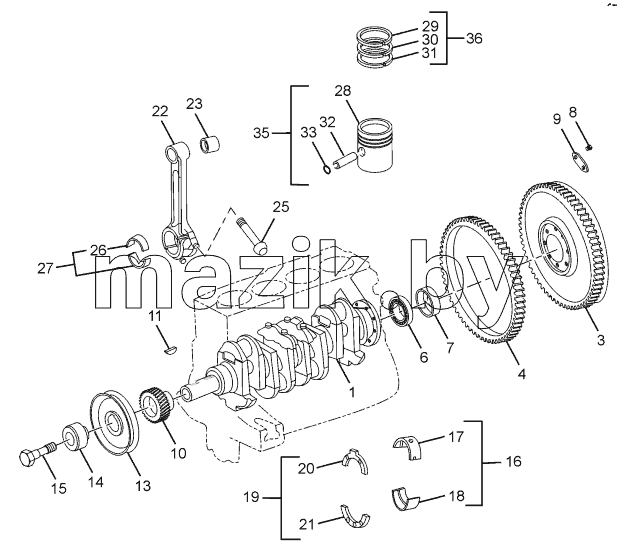

Каталог запасных частей к технике: Tata SFC 407 LHD Euro II. MOVING PARTS
