1

Upon brake friction plate

81.50221.0535

—

2

Lower brake friction plate

HD90009440177

—

3

Фиксатор

81.50211.0030

—

4

Roller

81.50213.0013

—

5

Bush

81.93021.0220

—

6

Фиксатор

81.50212.0032

—

7

Шайба

81.96501.0831

—

8

Bush

DZ95009440001

—

9

Заклепка

81.92201.0109

—

10

Brake shoe

DZ95009440002

—

10

Brake shoe

HD90009440175

—

11

Шайба

06.15113.2615

—

12

Circlip for axle

190003933072

—

13

Пружина

81.97610.0115

—

14

Фиксатор

81.50211.0018

—

15

Brake prevented cap

DZ95009440003

—

15

Brake prevented cap

HD90009440176

—

16

Brake camshaft

LEFT

81.50301.0223

—

16

Brake camshaft

RIGHT

81.50301.0224

—

17

Prevented dust cap

LEFT

81.50101.0223

—

17

Prevented dust cap

LEFT

HD90009446019

—

18

Кольцо уплотнительное

81.96502.6040

—

19

Prevented dust cap

(RIGHT)

81.50101.0224

—

19

Prevented dust cap

(RIGHT)

HD90009446020

—

20

Подшипник

81.93404.6005

—

21

Болт

Q150B1012

—

22

Packing hulkhead

81.96002.0098

—

23

Packing hulkhead

81.96002.0075

—

24

Hex flange surfaces bolt

Q184A1018TF2

—

25

Защитная пластина

81.90801.0225

—

26

Hex bolt

Q151B16125TF2

—

27

Болт

Q151B1645TF2

—

28

Болт

Q151B1640TF2

—

29

Brake floor

81.50202.0108

—

30

Air-chamber bearer

(LEFT)

81.50310.0313

—

30

Air-chamber bearer

(RIGHT)

81.50310.0312

—

31

Taper thread grease nipple

190003963114

—

32

Hex nut

Q40516F6

—

33

Hex nut

Q341B16F6

—

34

Болт

Q151B1690TF2

—

35

Кольцо уплотнительное

81.96502.6039

—

36

Bushing

81.91710.0163

—

37

Pin axle

06.21569.0077

—

38

Automatic gap adjusting arm

HD95009440009

—

39

Washer

Q40114/D.ZN8

—

40

Cotter pin

Q5004025

—

41

Болт

Q150B0812

—

42

Indicating plate

81.90711.0714

—

43

Brake shoe adjusting washer

AS REQUIRE

81.90711.0705

—

43

Brake shoe adjusting washer

AS REQUIRE

81.90711.0706

—

43

Brake shoe adjusting washer

AS REQUIRE

81.90711.0707

—

44

Шайба

81.90701.0769

—

45

Шайба уплотнительная

Q43134

—

46

Brake air-chamber

LEFT

HD95009360001

—

46

Brake air-chamber

RIGHT

HD95009360002

—

47

Гайка

190003884160

—

48

Wheel bolt

H150A2289BZF3

—

48

Wheel bolt

H150A2292AZF3

—

49

Болт

Q2541020

—

50

Brake drum

81.50110.0232

—

50

Brake drum

HD90009440351

—

51

Колпак защитный

81.44312.0009

—

52

Стопор

Q218B1040TF2

—

53

Гайка

81.92901.0066

—

54

Шайба стопорная

81.44215.0016

—

55

Radial- row-steep roller bearing

HD95009410007

—

56

O il baffle cover

HD90009410004

—

57

Front wheel hub

HD90009411302

—

57

Front wheel hub

HD90009410196

—

58

Oil-proofing cover

HD90009410165

—

59

Radial- row-steep roller bearing

06.32499.0190

—

60

Packing ring for axle

06.56279.0340

—

61

ABS ring

81.52403.0021

—

62

Circlip for hole

Q43068

—

63

Seal plate

81.44208.0009

—

64

Packing ring

DZ9100410406

—

65

Top bush

HD90009410358

—

66

Axle packing ring

HD90009410360

—

67

Втулка датчика

DZ9100580215

—

68

Датчик АВS

DZ9100580214

—

69

Knuckle arm

DZ95009410003

—

69

Knuckle arm

Steering knuckle arm (right)

HD90009410586

—

69

Knuckle arm

Steering knuckle arm (left)

DZ9100410403

—

69

Knuckle arm

Steering knuckle arm (right)

DZ90009410086

—

70

Hex bolt

Q151B2480TF2

—

71

Гайка № 1

Q341B16

—

72

Limiting screw

HD95009410002

—

73

Steering trapezium arm

(LEFT)

HD90009410191

—

73

Steering trapezium arm

(RIGHT)

HD90009410192

—

74

Hex bolt

Q151B2495TF2

—

75

Steering knuckle

(LEFT)

DZ9100410400

—

75

Steering knuckle

(RIGHT)

DZ9100410401

—

76

Packing ring for axle

06.56279.0343

—

77

Quill roller

06.33719.0097

—

78

Steering horizontal tie

DZ9100430090

—

79

Adjusting washer

AS REQUIRE

81.90713.0679

—

79

Adjusting washer

AS REQUIRE

81.90713.0680

—

79

Adjusting washer

AS REQUIRE

81.90713.0681

—

79

Adjusting washer

AS REQUIRE

81.90713.0682

—

79

Adjusting washer

AS REQUIRE

81.90713.0683

—

79

Adjusting washer

AS REQUIRE

81.90713.0684

—

79

Adjusting washer

AS REQUIRE

81.90713.0685

—

79

Adjusting washer

AS REQUIRE

81.90713.0686

—

79

Adjusting washer

AS REQUIRE

81.90713.0687

—

79

Adjusting washer

AS REQUIRE

DZ9100410412

—

79

Adjusting washer

AS REQUIRE

DZ9100410413

—

79

Adjusting washer

AS REQUIRE

DZ9100410414

—

79

Adjusting washer

AS REQUIRE

DZ9100410415

—

79

Adjusting washer

AS REQUIRE

DZ9100410416

—

79

Adjusting washer

AS REQUIRE

DZ9100410417

—

79

Adjusting washer

AS REQUIRE

DZ9100410418

—

79

Adjusting washer

AS REQUIRE

DZ9100410419

—

80

Steering knuckle pin

HD90009410357

—

81

Front axle

HD90009410949

—

81

Front axle

HD90009410977

—

82

Push row-steep roller bearing

HD90009411030

—

83

Болт

Q150B0835

—

84

Шайба

Q40008

—

85

Wear alarm long wiring

HD90009580001

—

86

Wearalarm short wiring

HD90009580002

—

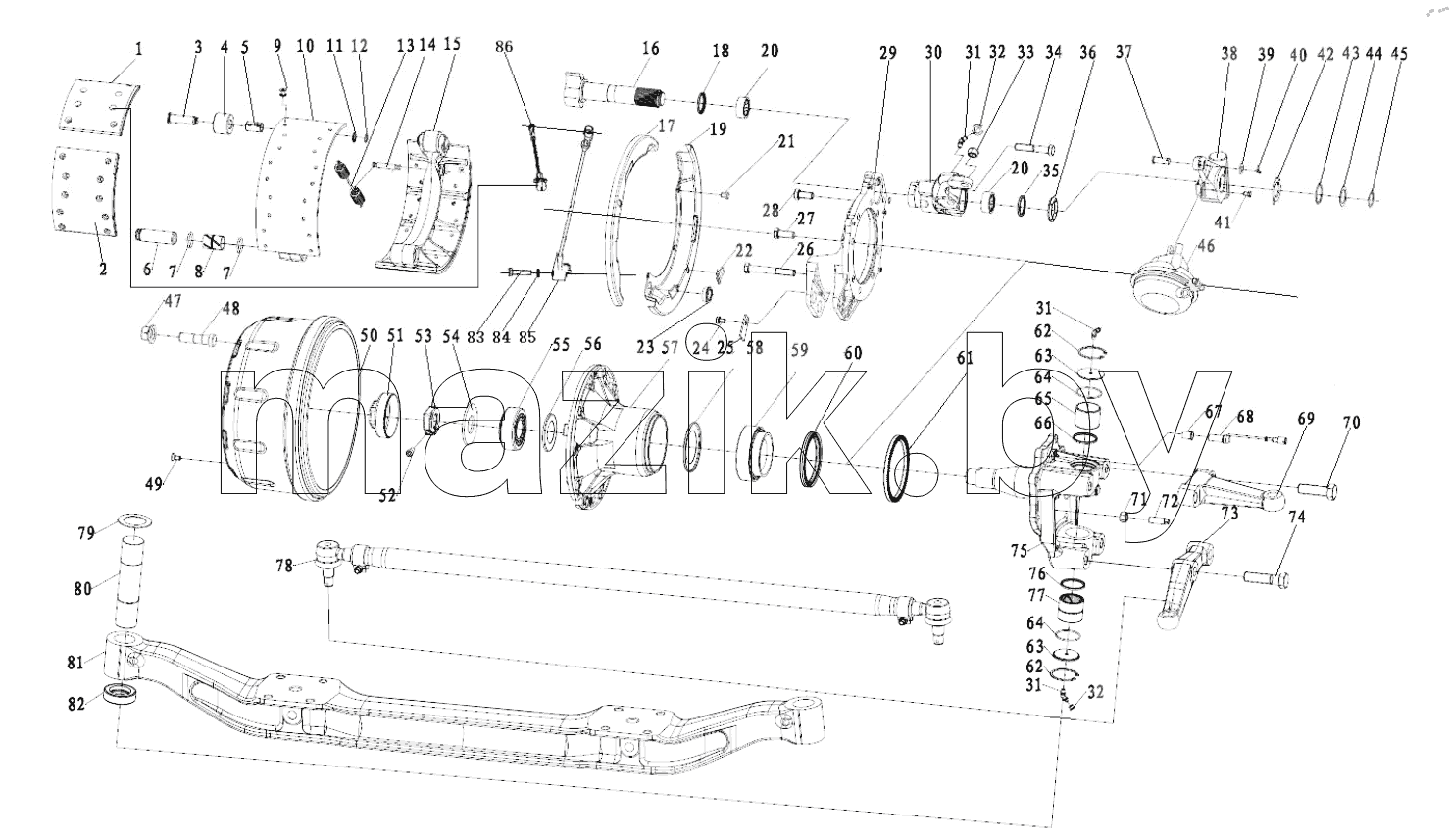

Каталог запасных частей к технике: Shaanxi Shacman SX331853386 (X5000). DC95319380547 MAN9.5T FRONT AXLE
