1

Болт

Q150B1025

—

2

Шайба пружинная

Q40310

190003931122

—

3

Cover

199014320175

—

4

Pressure switch

(The quantity here is the total amount of the middle and rear axles)

2190-3834010

—

5

Шайба

(The quantity here is the total amount of the middle and rear axles)

Q43705

—

6

169000330008

—

6

199112330016

—

6

DZ9112330041

—

6

DZ9112330042

—

6

DZ9112330043

—

6

DZ9112330044

—

7

Packing washer

(The quantity here is the total amount of the middle and rear axles) Q72318T5F

190003098020

—

8

Hex bolt

Q150B1050

190003802547

—

9

Гайка

Q340B10

190003871305

—

10

Slit bolt

GB75 M8x20Zn

190003902070

—

11

Hex nut

Q340B08

190003871252

—

12

Circlip for axle

190003933072

—

13

Bush

127000320037

—

14

O style packing ring

128800730062

—

15

Rocker arm

199014320076

—

16

Y-type hinge

(The quantity here is the total amount of the middle and rear axles)

190003964418

—

17

Flat head lock

(The quantity here is the total amount of the middle and rear axles)

178000350055

—

18

Hex.nut

(The quantity here is the total amount of the middle and rear axles), Q350B08T15

190003870221

—

19

Working cylinder

(The quantity here is the total amount of the middle and rear axles)

179100360018

—

20

Hex nut

Q33208

190003888451

—

21

Plain washer

Q40108

190003935007

—

22

Space collar

161000060072

—

23

Bearer assembly

199014320156

—

24

Hex bolt

150B0818

190003802415

—

25

Шайба пружинная

Q40308

190003931102

—

26

Plug screw assembly

DZ9112330620

—

27

Packing washer

Q72336, 1M,GB3190

AZ900309001

—

28

Bowling choke plug

190003989279

—

29

Magnetic plug assembly

DZ9112330623

—

30

Pass-axle box cap

199014320124

—

31

Stud

Q1201028F3

190003813527

—

32

Pass axle box

199014320259

—

33

Hex nut

Q340B12

190003871319

—

34

Spring washer

Q40312

190003931142

—

35

Stud

Q1201225F3

190003813622

—

36

Stud

Q1201230F3

190003813628

—

37

Final drive case

199014320119

—

38

Stud

Q12316120

190003810852

—

39

Differential bearing cover

DZ9112320002

—

40

Гайка VМ16х1,5DIN980

190003888459

—

41

Bearing seat

199014320141

—

42

Q5210820

190003901420

—

43

Q5211016

190003901506

—

44

Hex bolt

Q150B1020

190003802515

—

45

Oil baffle assembly

Used for i=4.42, 4.8

199014320118

—

45

Маслоприемник в сборе

Used for i=5.73, 6.72

AZ9114320178

—

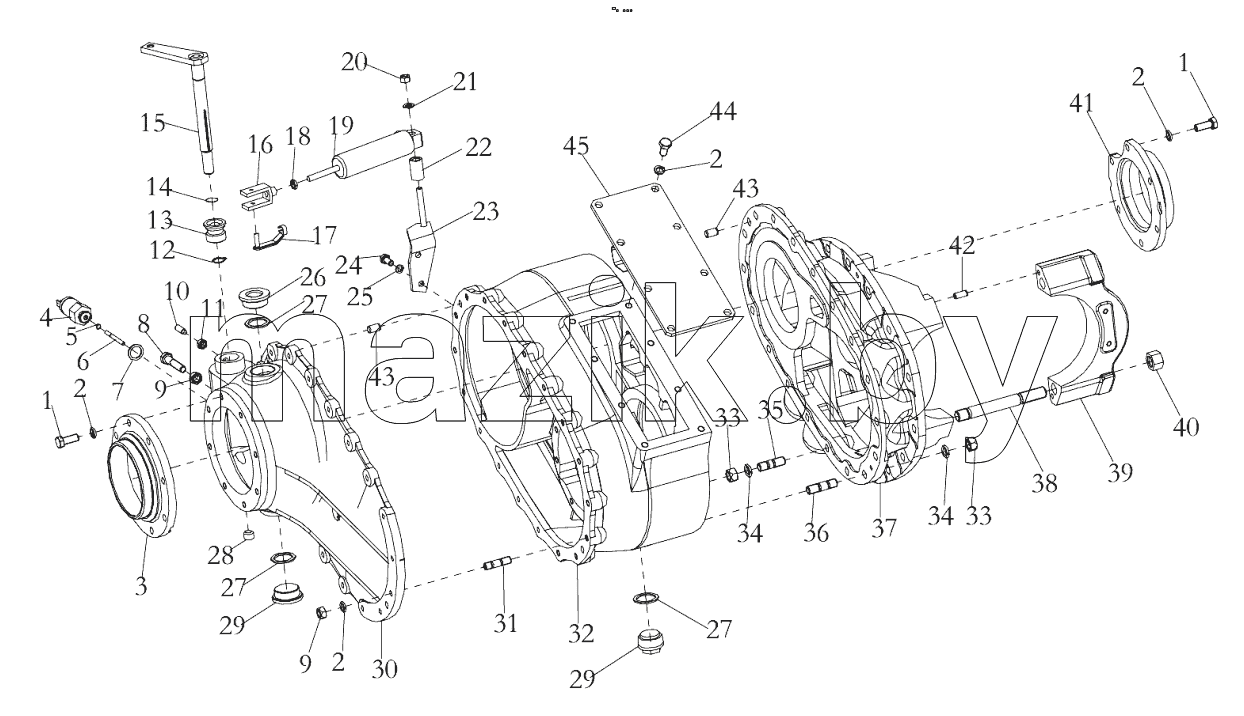

Каталог запасных частей к технике: Shaanxi Shacman F2000. STR MIDDLE BRIDGE DRIVE DEVICE I
