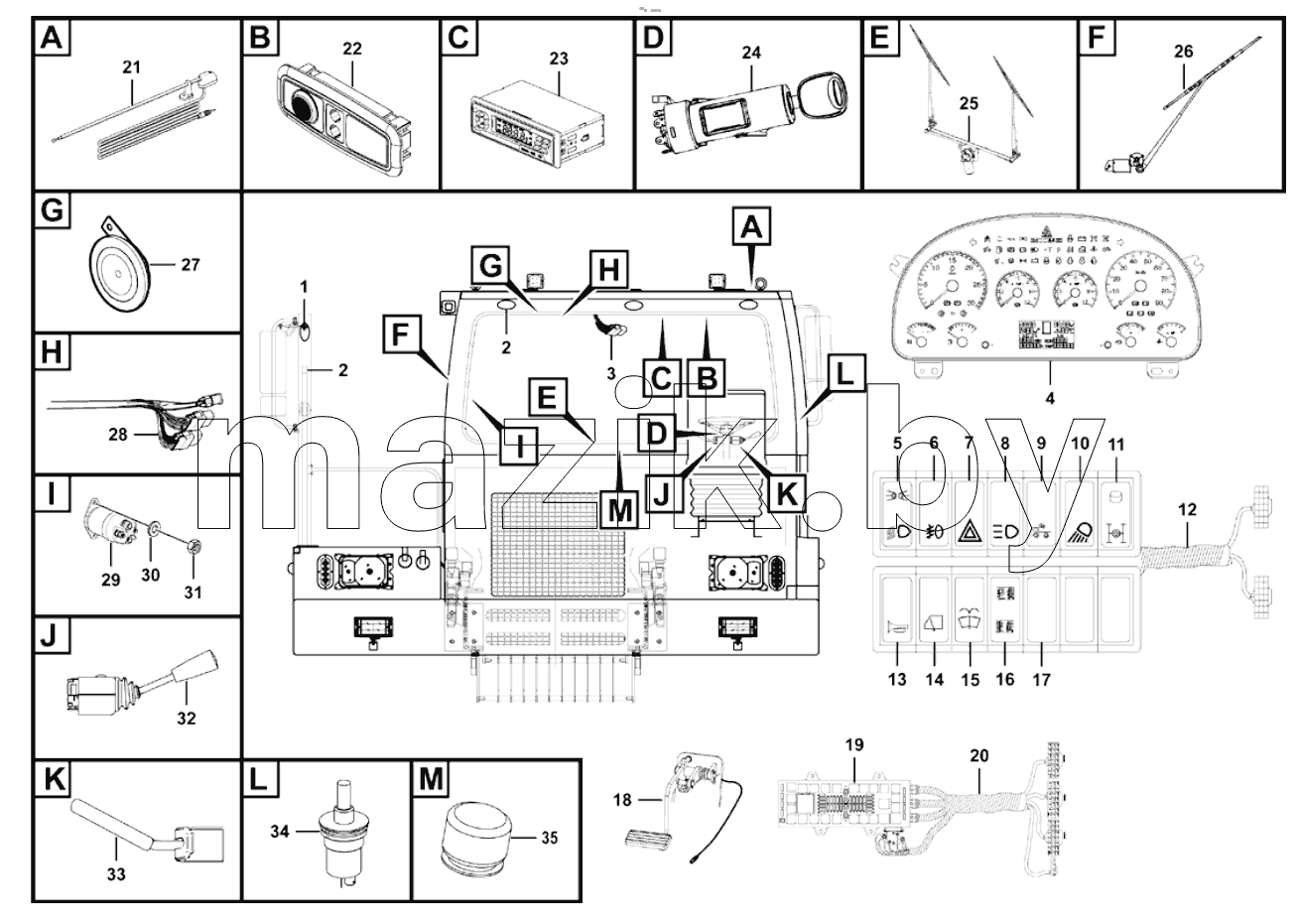

Каталог запасных частей к технике: LGMG MT76A. Cab electrical system

Каталог запасных частей к технике: LGMG MT76A. Cab electrical system

← Parking brake assembly Chassis electrical system →

№ п/п

Название по каталогу

Кат. номер

Наименование на сайте

Ост.

Цена, BYN

1

Front profile light of the cab

Front profile light of the cab

4130000954

—

—

—

2

Platform wiring harness

Platform wiring harness

27200106091

—

—

—

3

Ceiling wiring harness

Ceiling wiring harness

27130118091

—

—

—

4

Stepper dashboard ZB209LGNB

Stepper dashboard ZB209LGNB

4130000987

—

—

—

5

Work light, profile light rocker switch JK939C

Work light, profile light rocker switch JK939C

4130000318

—

—

—

6

Front fog light rocker switch JK939C

Front fog light rocker switch JK939C

4130000314

—

—

—

7

Central alarm rocker switch JK939C

Central alarm rocker switch JK939C

4130000320

—

—

—

8

Remote light rocker switch JK939C

Remote light rocker switch JK939C

4130000331

—

—

—

9

Rear cab work light rocker switch JK939C

Rear cab work light rocker switch JK939C

4130000342

—

—

—

10

Work light rocker switch JK939C

Work light rocker switch JK939C

4130000319

—

—

—

11

Inter-shaft differential rocker switch JK939C

Inter-shaft differential rocker switch JK939C

4130000317

—

—

—

12

Rocker switch wiring harness

Rocker switch wiring harness

27130117571

—

—

—

13

Horn rocker switch JK939C

Horn rocker switch JK939C

4130000315

—

—

—

14

Side window wiper rocker switch-JK939C

Side window wiper rocker switch-JK939C

4130000341

—

—

—

15

Wiper washing rocker switch JK939C

Wiper washing rocker switch JK939C

4130000819

—

—

—

16

Power curve switch rocker switch JK939C

Power curve switch rocker switch JK939C

4130001113

—

—

—

17

Cover plate

Cover plate

4130000328

—

—

—

18

Electronic throttle WL400244

Electronic throttle WL400244

4130000413

—

—

—

19

Central control box KZQ-003C

Central control box KZQ-003C

4130001102

—

—

—

20

Cab wiring harness

Cab wiring harness

27130118281

—

—

—

21

Antenna QT1290B259

Antenna QT1290B259

4130000300

—

—

—

22

Indoor ceiling light-LG751

Indoor ceiling light-LG751

4130000312

—

—

—

23

Radio tk-b50d

Radio TK-B50D

4130000706

—

—

—

24

Ignition switch-81.46433.6009-1

Ignition lock-81.46433.6009-1

4130001175

—

—

—

25

Integral wiper 37419000040

Integral wiper 37419000040

4130000949

—

—

—

26

Side rain wiper

Side wiper system

4130000807

—

—

—

27

Alarming tx1033ar29

Speaker TX1033AR29

4130000299

—

—

—

28

Head cap harness

Front ceiling light wiring harness

27130118101

—

—

—

29

Relay 202s-flo

Relay 202S-FLO

4130000671

—

—

—

30

Washer gb93-6epzn-65mn

Washer GB93-6EpZn-65Mn

4015000213

—

—

—

31

Nut gb6170-m6epzn-8

Nut GB6170-M6EpZn-8

4013000028

—

—

—

32

Combination switch(full hydraulic)-cs-102621

Combination switch (full hydraulic)-CS-102621

4130001174

—

—

—

33

Hand switch 35240020220

Manual switch 35240020220

4130000924

—

—

—

34

Switch -lg751

Door light switch-LG751

4130000323

—

—

—

35

Cigar lighter

Cigarette lighter-LG770

4130000364

—

—

—

−
