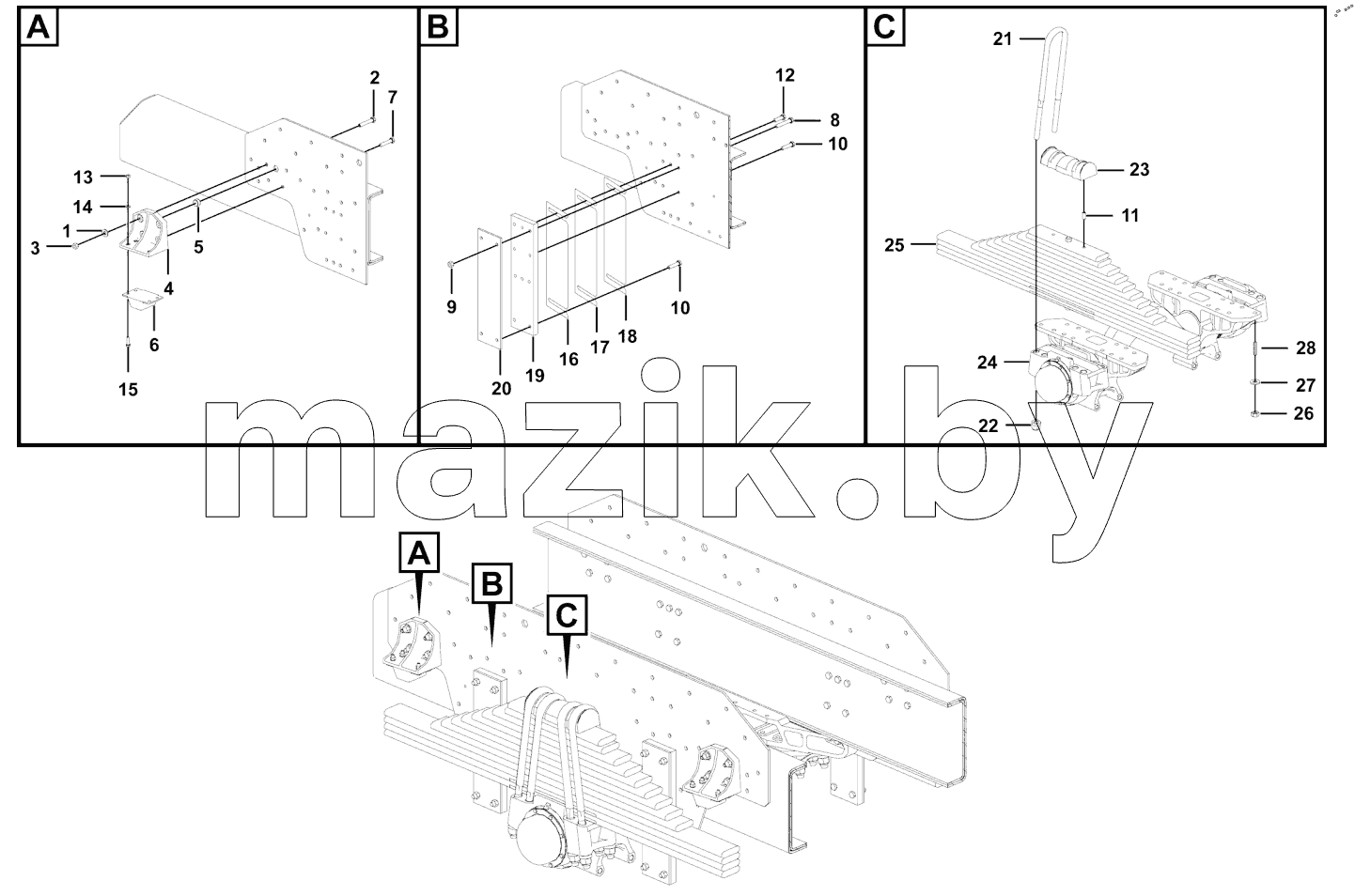

Каталог запасных частей к технике: LGMG MT50. Rear suspension assy

← Right front leaf spring assy Rear leaf spring assy →

№ п/п

Название по каталогу

Кат. номер

Наименование на сайте

Ост.

Цена, BYN

Washer gb1230-14epzn-45

4015000358

—

Bolt gb5782-m14x75flznyc-12.9-480

4011010600

—

Nut gb6185-m14flznyc-12-480

4013010253

—

The limiting block supporting frame

27120103962

—

Cushion block

27120103971

—

The limiting block assembly

27120103561

—

Bolt gb5783-m14x65flznyc-12.9-480

4011010546

—

Bolt gb5785-m14x1.5x80epzn-8.8

4011000112

—

Nut gb6185.2-m14x1.5epzn-8

4013010203

—

Bolt gb5785-m14x1.5x55epzn-8.8

4011000241

—

Guide pin

27120103821

—

Bolt gb5786-m14x1.5x45epzn-8.8

4011000876

—

Nut gb6185-m10epzn-8

4013010119

—

Washer gb97.1-10epzn-300hv

4015000162

—

Bolt gb5783-m10x35epzn-8.8

4011000085

—

Limit backing plate

27120107221

—

Limit backing plate

27120107231

—

Limit backing plate

27120107241

—

Side limiting cushion block

27120118301

—

Guide plate

27120106932

—

Rear leaf spring u bolt

27120110732

—

Nut gb2148-m24x2flznyc-12-480

4013010262

—

Plate

27120110691

—

Balance suspension assy

4110000804

—

Rr leaf spring assy

4110000811

—

Nut gb6171-m18x1.5flznyc-12-480

4013010257

—

Washer gb1230-18-45

27120105414

—

Stud gb899-a m18x1.5x45flznyc-12.9-480

4012010124

—

−
