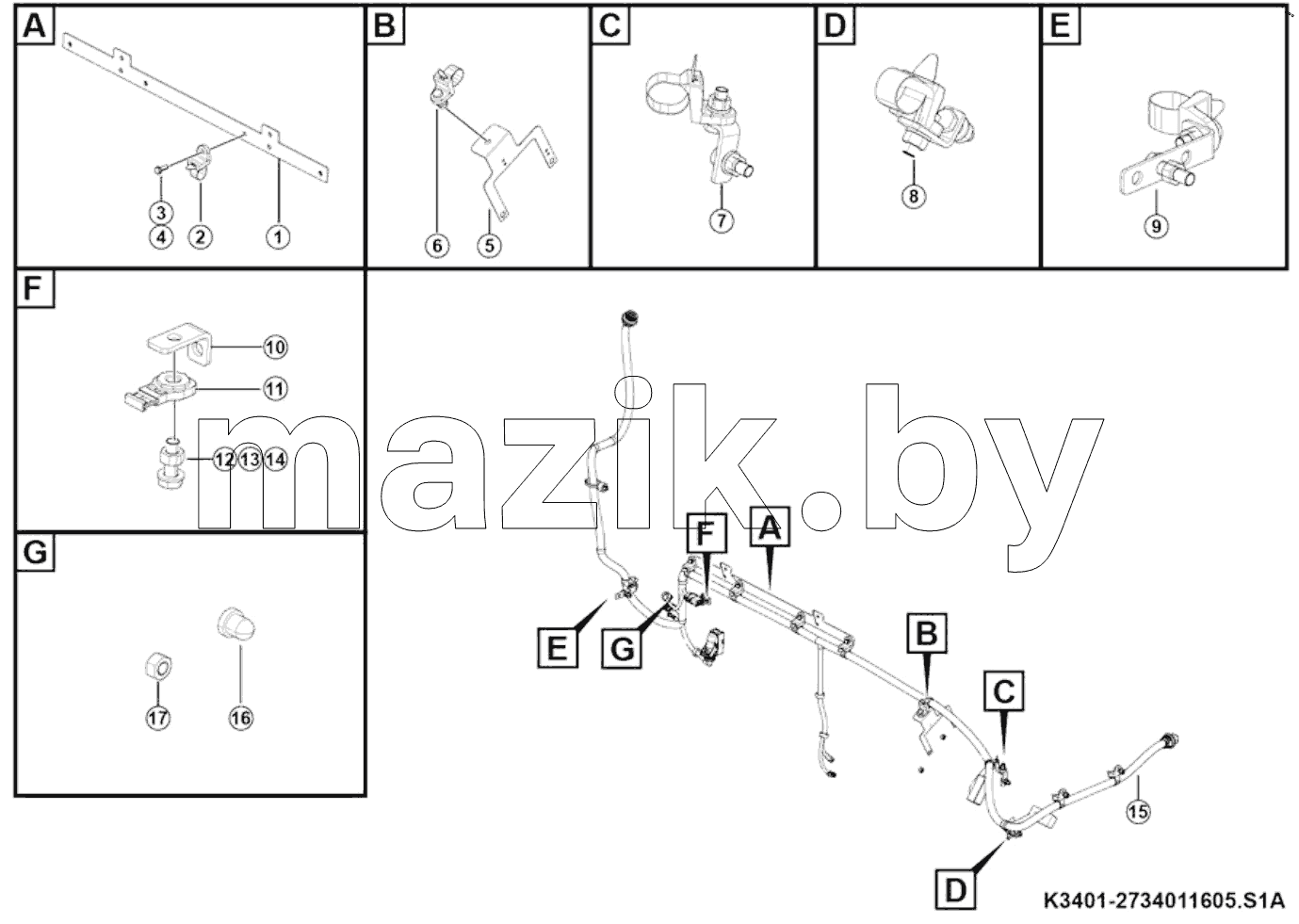

Каталог запасных частей к технике: LGMG CMT66. Engine electrical system

← Preheat electrical system Engine harness fixed system →

№ п/п

Название по каталогу

Кат. номер

Наименование на сайте

Ост.

Цена, BYN

Holder

27340103471

—

Cable tie hs-j117

4130704969

—

Bolt gb5783-m8x25epzn-8.8

4011000106

—

Washer gb97.1-8epzn-300hv

4015000072

—

Plate

27340101581

—

Wiring harness fixing point assembly M10x25 (without bracket)

27200145871

—

Wire harness fixed point assembly

(m10 x 30 + battery cabinet bracket)

2720014943-001

—

Wire harness fixed point assembly

(m10 x 30 + battery cabinet bracket)

27200149431

—

Harness fixing point assy m10x35

2720015422-004

—

Holder

27200142321

—

Clip spring 14400370

4130703099

—

Bolt gb5783-m10x30epzn-8.8

4011000084

—

Washer gb97.1-10epzn-300hv

4015000162

—

Nut gb6170-m10epzn-8

4013000007

—

Engine harness

27340116061

—

Nylon cap nut m8

4130705735

—

Nut gb6170-m8epzn-8

4013000033

—

−
