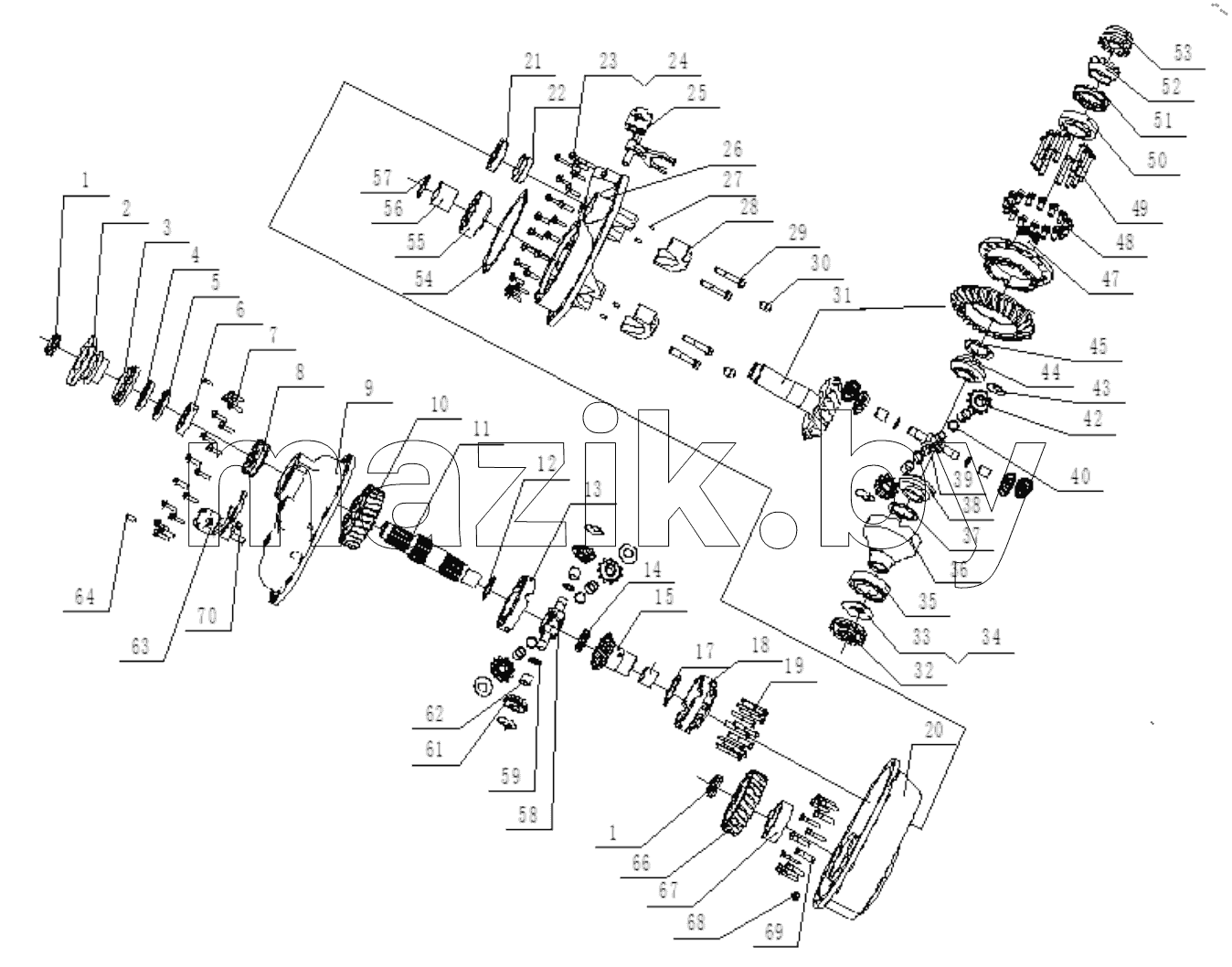

2500010-Q607B

Intermediate Axle Assembly

Middle Axle Assembly (300 Cast Wheel Reduction Axle, 5.921, plus)

2500010-Q607B

—

W2507015F01C

Thrust Washer

LC300 Thrust Washer (4.2) (Not Used for Testing)

W2507015F01C

—

W2507018F01C

Thrust Washer

LC300 Thrust Washer (3.85) (Testing)

W2507018F01C

—

W2507019F01C

Thrust Washer

LC300 Thrust Washer (3.65) (Not Used for Testing) LC300 differential front housing (rough machining)

W2507019F01C

—

W2510033F01C

Half-Axle Gear Washer

Half-shaft gear shim - differential rear CU

W2510033F01C

—

W2510036F01C

Half-Axle Gear Washer

Half-shaft gear shim - differential rear CU

W2510036F01C

—

W2510037F01C

Half-Axle Gear Washer

Half-shaft gear shim - differential rear CU

W2510037F01C

—

W2403020F01C

Differential House Assy

W2403020F01C

—

W2506053F01C

Gasket

W2506053F01C

—

W2510020F01C

Differential Housing Assembly

W2510020F01C

—

W2510040F01C

Planetary Gear Assembly

W2510040F01C

—

Z2403010F01C

DifferentialAssembly

Z2403010F01C

—

Z2510010F01C

Intershaft Differential Assy

Z2510010F01C

—

1

Flange Nut

W2402071F01C

—

2

Flange

LC300 Flange - End Face Gear (4 Holes)

W2502070F03A

—

3

Oil Seal Carrier

LC300 Middle Reduction Oil Seal Seat - DA Same as Middle Axle

W2507013F01C

—

4

Seal, Oil

LC300 Oil Seal (485 Middle Reduction Same as Middle Axle)

W2502055F01C

—

5

Seal, Oil

LC300 Oil Seal (485, 469 Middle Reduction Same as Middle Axle)

W2502056F01C

—

5

Half-Axle Gear Washer

W2403052F01C

—

5

Half-Axle Gear Washer

W2403058F01C

—

5

Half-Axle Gear Washer

W2403059F01C

—

5

Half-Axle Gear Washer

W2403060F01C

—

5

Axle Shaft Gear

W2403051F01C

—

6

Bearing

485 Bearing (Middle Reduction) - LC Same as Middle Axle

6313/HAC3

—

7

Hexagon Head Bolt-Thin Tooth

Hex Head Bolt - Fine Thread

Q1811240T

—

8

Intermediate Sliding Gear Sleeve

LC300 Middle Sliding Engagement Sleeve

W2507016F01C

—

9

Gap Bridge BoxCover

LC300 Transition Box Cover

W2507011F01C

—

10

Cylindrical Gear

LC300 Middle Reduction Cylindrical Gear - Drive

W2502107F01C

—

11

Decelerate Through The Shaft

485 Reduction Through Drive Shaft - LC Borrow

W2502261F01C

—

12

Thrust Washer

LC300 Thrust Washer (4.0) (Not Used for Testing)

W2507017F01C

—

13

Front Housing

Differential inner lock nut

W2510021F01C-20

—

14

Lock Nut

LC300 half-shaft gear assembly (485)

W2510023F01C

—

15

Half Axle Shaft GearAssembly

Half-shaft gear shim - differential rear CU

W2510030F01C

—

17

Half-Axle Gear Washer

Half-shaft gear shim - differential rear CU

W2510035F01C

—

18

Rear Housing

LC300 differential rear housing (rough machining)

W2510022F01C-20

—

19

Hexagon Head Bolt-Thin Tooth

Hex head bolt - fine thread

Q151C1280T

—

20

Gap Bridge

LC300 bridge gearbox

W2502121F01C

—

21

Bearing

485 bearing (intermediate reducer) - LC intermediate bearing

6216/HAC3

—

22

Locating Sleeve

W2502023F01C

—

23

Bolt

W2402011F01C

—

24

Locking Bolt

W2402012F01C

—

25

Intershaft Differtial Locking Sub Assy

Z2406010F01C-F

—

26

Final Drive HousingAssy

Z2502020F01C

—

27

Cylindrical Pin

Q5210820

—

28

Cone Gear Differential Bearing Cover

Z2402022F01D-10

—

29

Locking Bolt

W2402024F01C

—

30

Dowel, Pin

W2402025F01C

—

31

Driving. Driven Bevel Gear Assy

W2502030F01B

—

32

Adjusting Nut

W2403071F01C

—

33

Bearing Shield

W2403072F01C

—

34

Seal, Oil

W2403073F01C

—

35

Bearing

33115 (3007715)

—

36

Differential Housing (Lh)

W2403021F01C-20

—

37

Half-Axle Gear Washer

W2403052F01C

—

37

Half-Axle Gear Washer

W2403058F01C

—

37

Half-Axle Gear Washer

W2403059F01C

—

37

Half-Axle Gear Washer

W2403060F01C

—

37

Axle Shaft Gear

W2403051F01C

—

39

Cross Shaft

W2403056F01C

—

40

Spacer Ring

W2403055F01C

—

42

Planetary Gear Assembly

W2403050F01C

—

43

Planet Gear Washer

W2403054F01C

—

47

Differential Housing (Rh)

W2403022F01C-20

—

48

Bolt

W2403024F01C

—

49

Locking Bolt

W2403023F01C

—

51

Adjusting Ring

W2403078F01C

—

52

Fixing Meshing Bush

W2407017F01C

—

53

Sliding GearSleeve

W2407016F01C

—

54

Adjusting Gasket

Adjusting shims (cannot be quantified, general drawing number 31-34)

W2502131F01C

—

54

Adjusting Gasket

Adjusting shims (cannot be quantified, use general drawing number)

W2502132F01C

—

54

Adjusting Gasket

Adjusting shims (cannot be quantified, use general drawing number)

W2502133F01C

—

54

Adjusting Gasket

W2502134F01C

—

55

Bearing

32314B (T5GD070)

—

56

Spacer

W2502034F01C

—

56

Spacer

W2502035F01C

—

57
