10478800

Steering transmission device with adjustor assembly

Include 1-28

10478800

—

11116500

Seal cover

11116500

—

11116600

Sleeve

11116600

—

11116900

Steering universal joint fork

11116900

—

Q700B06

Straight-type grease nozzle

Q700B06

—

10479100

Steering universal joint with spline shaft assembly

10479100

—

11116200

Steering universal joint fork & spline shaft assembly

11116200

—

11116100

Spline shaft

11116100

—

10479900

Steering universal joint yoke, steering shaft

10479900

—

10480000

Cross shaft & bearing assembly

10480000

—

11116800

Steering universal joint yoke, steering gear

11116800

—

Q32010-F7

Nut

Q32010-F7

—

Q32010-F7

Nut

Q32010-F7

—

Q174B0410

Bolt

Q174B0410

—

Q40104

Шайба

Q40104

—

10053600

Bolt

10053600

—

Q340B08

Гайка

Q340B08

—

Q40308

Пружинная шайба

Q40308

—

Q40108

Плоская шайба

Q40108

—

11116300

Slide fork assembly

11116300

—

10480000

Cross shaft & bearing assembly

10480000

—

11116700

Steering universal joint fork

11116700

—

10479000

Universal joint assembly, steering slide yoke

10479000

—

11116400

Oil seal

11116400

—

10479300

Steering shaft with anti-theft locking sleeve assembly

10479300

—

10478900

Steering column support

10478900

—

10053100

Guide gasket

10053100

—

10053500

Slide block

10053500

—

1

Steering transmitting device

Include 8,9

10479200

—

2

Adjuster spanner assembly

10052700

—

3

Bolt

10052800

—

4

Nut

10052900

—

5

Bolt

10053200

—

6

Washer

10053300

—

7

Support assembly, angle adjuster of steering column

10053400

—

8

Steering shaft assembly

Include 10,18-28

10052400

—

9

Steering universal joint with spline auxiliary assembly

10479400

—

10

Гайка

Q351B20

—

11

Spring

10053000

—

12

Болт

Q150B1045

—

13

Гайка

Q340B10

—

14

Шайба

Q40410

—

15

Болт

Q1840825

—

16

Bolt

Q1841045-F7

—

17

Ball bearing

10051900

—

18

Кольцо

Q43125

—

19

Dust shield

10052100

—

20

Dust shield bracket

10052200

—

21

Fixing support of steering column tube

10052300

—

22

Bolt

Q174B0410

—

23

Шайба

Q40304

—

24

Шайба

Q40104

—

25

Hexagon Cross Slotted Bolt

Q174B0512

—

26

Плоская шайба

Q40105

—

27

Пружинная шайба

Q40305

—

28

Washer

10053900

—

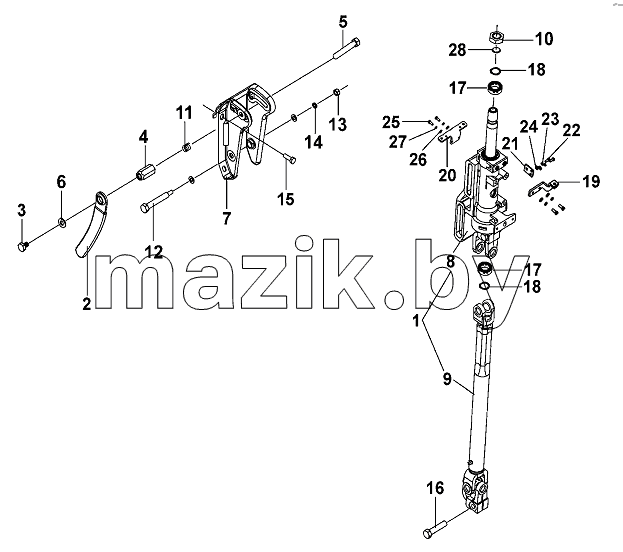

Каталог запасных частей к технике: DongFeng DFL-3251AW1. Steering Transmission Device Group
