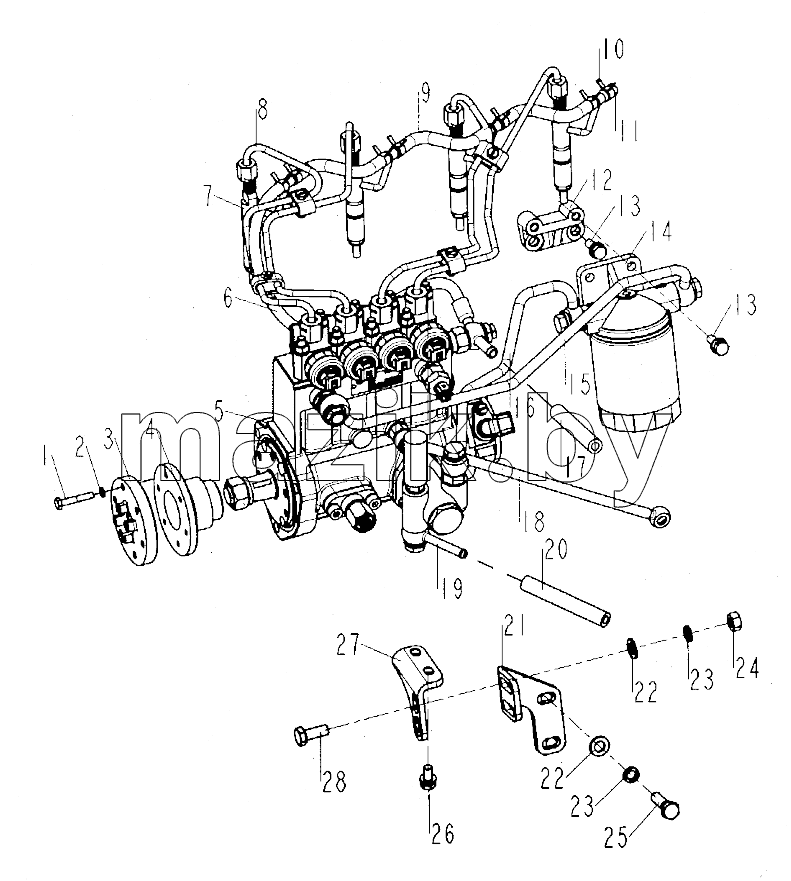

Каталог запасных частей к технике: XINCHAI 4D32ZT31. Fuel supply system assembly

← Flywheel housing assembly Circuit group assemble →

№ п/п

Название по каталогу

Кат. номер

Наименование на сайте

Ост.

Цена, BYN

Bolt М6х35

GB/T5783- M6x35

—

Washer 6

GB93-6

—

Pump sleeve

4D32ZT31-02019

—

Fuel injection pump timing gear shaft sleeve

4D32ZT31-G2015

—

Fuel injection pump

4D27ZG31-21100

—

Injector leak-off pipe

4D27ZG31-25100-1

—

Fuel injector

4D32ZT31-22000

—

High pressure fuel tube assembly

4D32ZT31-23000-1

—

Injector leak-off pipe

498B-25002

—

Hose clamp

498B-25004

—

Fuel injector oil cap

498B-25001

—

Fuel filter back plate

490B-01076B

—

Bolt

GB/T9074.17-M8x25

—

Fuel filter

490B-24000A

—

Fuel supply tube from fuel filter to injection pump

4D32ZT31-25200

—

Fuel supply tube from supply pump to fuel filter

4D32ZT31-25300

—

Oil return hose

4D32ZT31-25600

—

Oil pump forced lubricating oil tube parts

4K39T-21100-1

—

Fuel supply pump connector

490B-25401-1

—

Suction hose

4D32ZT31-25500

—

Pump lower bracket

4D32ZT31-01077

—

Washer 10

GB/T97.1-10

—

Washer 10

GB93-10

—

Nut M10

GB/T6170-М10

—

Bolt M10x25

GB/T5783-M10x25

—

Bolt M8x18

GB/T9074.17-M8x18

—

Pump upper bracket

4D32ZT31-01076

—

Nut М10х30

GB/T5783-M10X30

—

−
