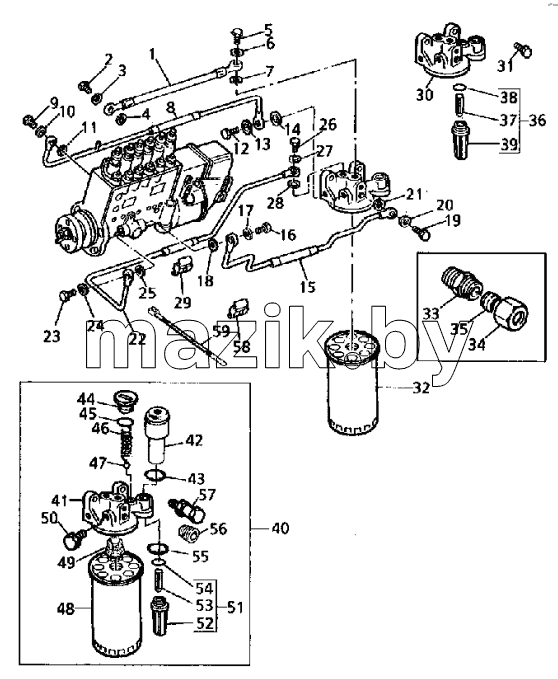

Каталог запасных частей к технике: Perkins 1006-6T. LOW PRESSURE FUEL SYSTEM

Каталог запасных частей к технике: Perkins 1006-6T. LOW PRESSURE FUEL SYSTEM

← FLYWHEEL HOUSING THROTTLE AND STOP CONTROLS →

№ п/п

Название по каталогу

Кат. номер

Наименование на сайте

Ост.

Цена, BYN

1

Hose assy

1820326C1

—

—

—

2

Bolt

supplied with fuel injection pump

Bolt

—

—

—

3

Washer

supplied with fuel injection pump

Washer

—

—

—

4

Washer

supplied with fuel injection pump

Washer

—

—

—

5

Screw

1810491C1

—

—

—

6

Gasket

691273C1

—

—

—

7

Gasket

691273C1

—

—

—

8

Fuel pipe

1820327C2

—

—

—

9

Bolt

supplied with fuel injection pump

Bolt

—

—

—

10

Washer

supplied with fuel injection pump

Washer

—

—

—

11

Washer

supplied with fuel injection pump

Washer

—

—

—

12

Screw

1810491C1

—

—

—

13

Gasket

691273C1

—

—

—

14

Gasket

691273C1

—

—

—

15

Tube assy

1820324C2

—

—

—

16

Bolt

supplied with fuel injection pump

Bolt

—

—

—

17

Washer

supplied with fuel injection pump

Washer

—

—

—

18

Washer

supplied with fuel injection pump

Washer

—

—

—

19

Screw

1810491C1

—

—

—

20

Gasket

691273C1

—

—

—

21

Gasket

691273C1

—

—

—

22

Tube

1820325C1

—

—

—

23

Bolt

supplied with fuel injection pump

Bolt

—

—

—

24

Washer

supplied with fuel injection pump

Washer

—

—

—

25

Washer

supplied with fuel injection pump

Washer

—

—

—

26

Screw

1810491C1

—

—

—

27

Gasket

691273C1

—

—

—

28

Gasket

691273C1

—

—

—

29

Clip

1820330C1

—

—

—

30

Filter head

Order Ref.40 Repairs And Replaces 1821989C92

Filterhead

—

—

—

31

Bolt metric

1817978C1

—

—

—

32

Fuel filter

Order Ref.48

Fuelfilter

—

—

—

36

Fuel filter

Order Ref.51

Fuelfilter

—

—

—

37

Strainer

Order Ref.53

Strainer

—

—

—

38

O-ring

Order Ref .54

O-ring

—

—

—

39

Cover

Order Ref.52

Cover

—

—

—

40

Filter head

was 1824833C93, 1824833C92, 1824833C91, 1821989C93

1824833C94

—

—

—

41

Filter head

Order Ref.40

Filterhead

—

—

—

42

Priming pump

Repairs And Replaces 1821157C1

1824946C1

—

—

—

43

Gasket

1823029C1

—

—

—

44

Plug

1820919C1

—

—

—

45

O-ring

379181R1

—

—

—

46

Spring

1823734C1

—

—

—

47

Ball

1820478C1

—

—

—

48

Fuel filter

used only with 1824833C91, 1821989C93, 1821989C92, 1821989C91

26562003

—

—

—

48

Fuel filter

used only with 1824833C92 and 1824833C93

1822588C1

—

—

—

49

Adaptor

Order Ref.40

Adaptor

—

—

—

50

Plug

1823735C1

—

—

—

51

Fuel filter

1817677C91

—

—

—

52

Cover

Order Ref.51

Cover

—

—

—

53

Strainer

1817674C1

—

—

—

54

O-ring

Order Ref.51

O-ring

—

—

—

55

O-ring

1823782C1

—

—

—

56

Plug

444693

—

—

—

57

Bleeder

used only with 1821989C93, 1824833C91, 1824833C92 and 1824833C93

39677DA

—

—

—

57

Bleeder

used only with 1824833C94

1816216C1

—

—

—

58

Clip

1820331C1

—

—

—

−
