1

Kit

cyl. head, Repairs And Replaces 1824639C92 Repairs And Replaces 1824639C91, Used only with 1824639C91, 1824639C92, and 1824639C93.

1824639C93

—

2

Kit

cyl. head 1, Repairs And Replaces 1822369C91

1824640C91

—

3

Cylinder head

Order Ref.2

Cylinderhead

—

4

Plug

2

444650

—

5

Plug

2

445751

—

6

Guide

Used only with 1822369C91, 2

1820264C1

—

6

Guide

Used only with 1824640C91, 2

1824646C1

—

7

Sleeve

2

675442C1

—

8

Plug

2

445751

—

9

Plug

2

9409949

—

10

Plug

2, Not fitted on this application.

Plug

—

11

Insert

inlet, 2

675043C1

—

12

Insert

2, exhaust, Repairs And Replaces 675450C2

675450C3

—

12

Insert

exhaust

671563C3

—

12

Insert

exhaust

671565C3

—

13

Valve inlet

1, Used only with 1824639C91, 1824639C92, and 1824639C93.

1824642C2

—

13

Valve inlet

Used only with 1822368C91.

1818580C1

—

14

Valve exhaust

Used only with 1822368C91.

1818579C1

—

14

Valve exhaust

Used only with 1824639C91, 1824639C92, and 1824639C93.

1824643C1

—

15

Seal

1, Used only with 1822368C91.

1822245C1

—

15

Seal

Used only with 1824639C91, 1824639C92, and 1824639C93.

1823925C1

—

16

Spring

inlet

677349C1

—

17

Spring

1, exhaust

1825540C1

—

18

Rotator

Contains 1824683C1 seal., Used only with 1824639C91, 1824639C92, and 1824639C93.

1824680C1

—

18

Rotator

Contains 1819380C1, Used only with 1822368C91.

1820826C91

—

19

Key

Used only with 1822368C91.

1810944C1

—

19

Key

Used only with 1824639C91, 1824639C92, and 1824639C93.

1824644C1

—

20

Head gasket

Repairs And Replaces 1817562C3

1817562C4

—

21

Dowel

Refer to cylinder block section.

Dowel

—

22

Bolt

1817352C1

—

23

Washer

1814757C1

—

24

Bolt

1817355C1

—

25

Washer

1814757C1

—

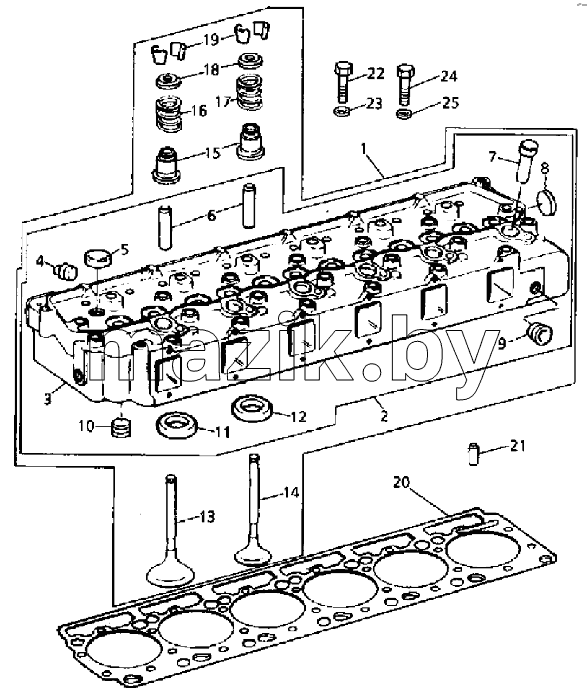

Каталог запасных частей к технике: Perkins 1006-6T. CYLINDER HEAD
