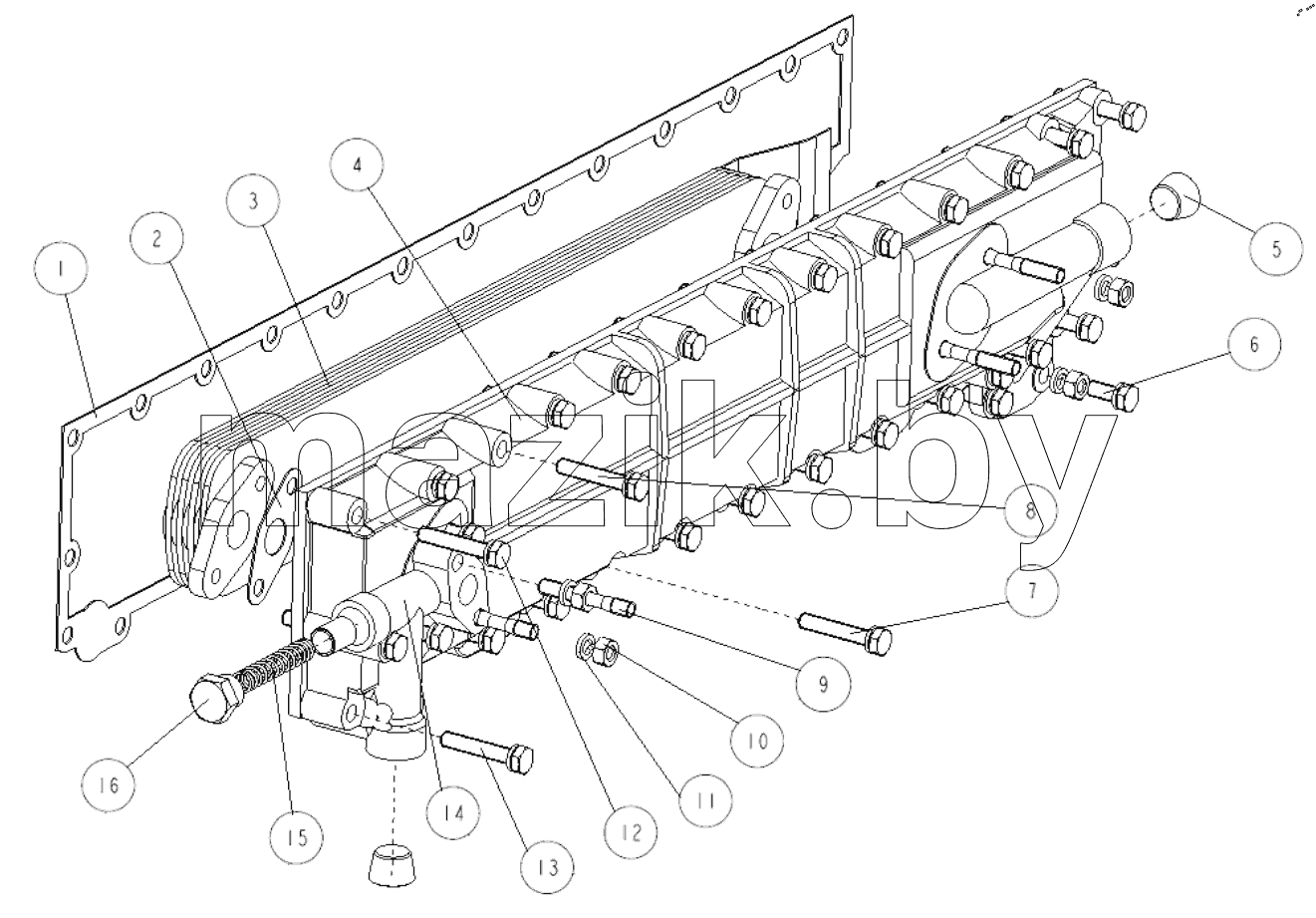

Каталог запасных частей к технике: DongFeng CY6102BG4-2. Oil Cooler Assembly

← Thermostat Assembly Electric Equipment Assembly →

№ п/п

Название по каталогу

Кат. номер

Наименование на сайте

Ост.

Цена, BYN

Oil cooler cover gasket

6102.18.02

18002BA001

—

Shim

6102.18.08

18008BA001

—

Oil cooler

6102B1.18.10

18010BA002

—

Oil cooler cover

6102B1.18.01

18001BA001

—

Bolt joint

6102.18.07

18007BA001

—

Hexagon head bolt composite member

GB/T9074.15-M8x20

Q1420820

Болт сцепления, JAC, Китай

144

Уточняйте

Hexagon head bolt composite member

GB/T9074.15-M8x30

Q1420830

—

Hexagon head bolt composite member

GB/T9074.15-M8x55-22

Q1420855

—

Double-screw bolt M8X38

GB/T898-M8x38

Q1200838

—

Гайка

GB/T6170-M10

Q340B08

—

Легкая пружинная шайба

GB/T859-8

Q40408

—

Hexagon head bolt composite member

GB/T9074.15-M8x45-22

Q1420845

—

Hexagon head bolt composite member

GB/T9074.15-M8x70-22

Q142087022

—

Slide valve

6102.18.03

18003BA001

—

Pressure adjusting spring

6102.18.04

18011BA001

—

Pressure adjusting spring seat

6102.18.06

18006BA001

—

−
