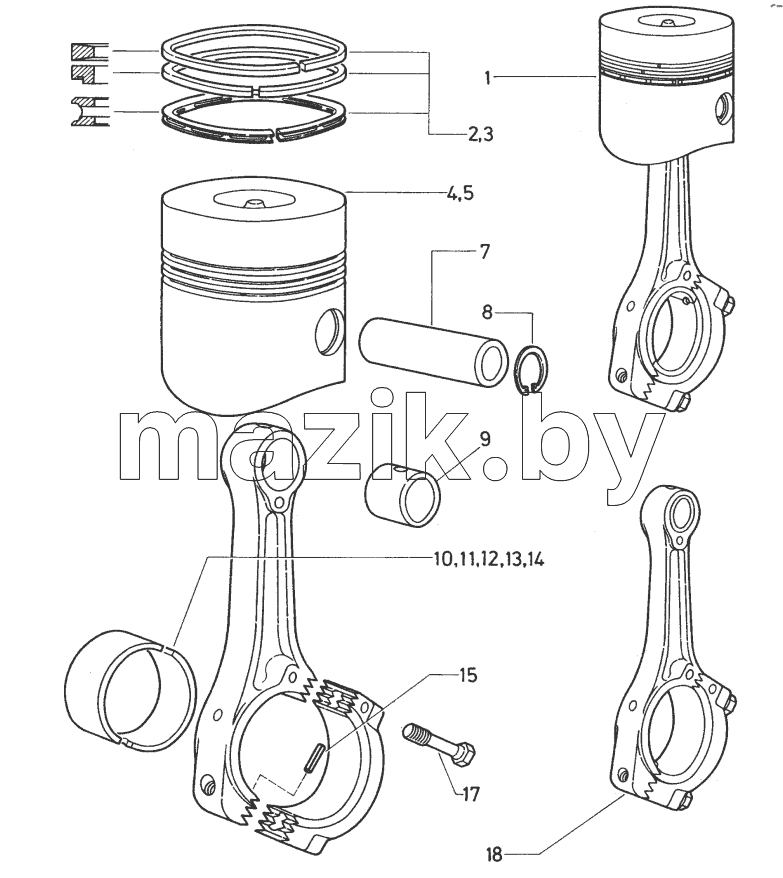

Каталог запасных частей к технике: Deutz LKSR. Piston and connecting rod

← Crankshaft Camshaft and walves withactuating mechanism →

№ п/п

Название по каталогу

Кат. номер

Наименование на сайте

Ост.

Цена, BYN

Connecting-rod-Piston cpl.

(with fig. No. 4, 10, 46, 18)

99871.160.005.8

—

Piston rings set

85 mm

99871.019.008.7

—

Piston rings set

85'5 mm

99871.019.009.7

—

Piston compl.

85 mm, Valid up to engine - No. : 36.124

99871.160.002.7

—

Piston compl.

85 mm

99871.160.005.7

—

Piston compl.

85'5 mm

99878.160.043.7

—

Piston pin

000.986.00.03

—

Spring ring

26x1,2 DIN 472

60305.02.0.0026

—

Connecting rod bush

69870.431.001.4

—

Connecting rod bearing

40 mm

69870.430.001.7

—

Connecting rod bearing

39,75 mm

69878.430.003.7

—

Connecting rod bearing

39,50 mm

69878.430.005.7

—

Connecting rod bearing

69878.430.007.7

—

Connecting rod bearing

69878.430.009.7

—

Clampнng sleevee

4x16 DIN 1481

60220.15.0.0416

—

Cap screw

91200.10.1.0840

—

Connecting rod compl.

(with fig. No. 9, 15, 17)

36001106

—

−
