MP5267

CONNECTION, WATER PUMP

MP5267

—

MP5273

SUPPORT WATER PUMP MTG

MP5273

—

MP5274

PUMP WATER MTG

MP5274

—

MP5479

HOUSING, ROCKER ARM MTG

MP5479

—

3010248

COVER, VALVE MTG

3010248

—

3628772

COVER, ROCKER LEVER

3628772

—

3648596

BLOCK, CYLINDER

3648596

—

3648602

BLOCK, CYLINDER

3648602

—

3011512

GEAR CAM IDLER MTG

3011512

—

MP5474

GEAR IDLER MTG

MP5474

—

3634561

LUBE OIL PUMP MTG,

3634561

—

AR11441

BRACKET, LIFTING

AR11441

—

3011737

SHELL, MAIAN BEARING

3011737

—

3034627

RETAINER, THRUST MTG

3034627

—

3176986

MOUNTING, INJECTOR

3176986

—

3041271

MECHANISM, BARRING MTG

3041271

—

3006089

LINER CYLINDER

3006089

—

AR12250

KIT, MAIN BEARING

AR12250

—

AR12251

KIT, MAIN BEARING

0, 010

AR12251

—

AR12252

KIT, MAIN BEARING

0, 020

AR12252

—

AR12253

KIT, MAIN BEARING

0, 030

AR12253

—

AR12324

KIT, MAIN BEARING

0, 040

AR12324

—

3007525

KIT, LINER

3007525

—

LUBRICATING OIL COOLER

—

3068865

COVER, CAMSHAFT MTG

3068865

—

3634289

CAMSHAFT, MTG

3634289

—

3628092

FOLLOWER, CAM MOUNTING

3628092

—

3634780

HOSE, TURBO OIL SUPPLY

3634780

—

3634781

HOSE, TURBO OIL SUPPLY

3634781

—

3631776

MOUNTING, WATER INLET CONN

3631776

—

3176337

MOUNTING, SHIPPING SKID

3176337

—

3628943

MTG, PARTS

3628943

—

1

SUPPORT, OIL GAUGE TUBE

3/8 in.

S604

—

1

SUPPORT, OIL GAUGE TUBE

S604

—

1

SUPPORT, OIL GAUGE TUBE

3/8 in.

S604

—

1

SUPPORT, OIL GAUGE TUBE

3/8 in.

S604

—

2

PLUG, PIPE

S907A

—

2

PLUG, PIPE

S907A

—

3

Плоская шайба

108330

—

4

SCREW, HEXAGON HEAD

108707

—

5

SEAL, O-RING

206457

—

5

SEAL, O-RING

206457

—

6

SCREW, CAPTIVE WASHER CAP

3010596

—

6

SCREW, CAPTIVE WASHER CAP

3/8-16x1 1/4 in.

3010596

—

7

SUPPORT WATER PUMP

3175857

—

8

Трубная пробка

1/4 in.

3628605

—

8

Трубная пробка

3628605

—

8

Трубная пробка

1/4 in.

3628605

—

9

PLUG PIPE

3628606

—

10

SCREW, HEX HEAD CAP

S162A

—

11

WASHER, LOCK

7/16 in.

S610

—

11

WASHER, LOCK

7/16 in.

S610

—

11

WASHER, LOCK

7/16 in.

S610

—

12

SCREW, HEXAGON HEAD CAF

7/16-14X1 1/4 in.

103009

—

12

SCREW, HEXAGON HEAD CAF

7/16-14X1 1/4 in.

103009

—

13

GASKET, SUPPORT

206416

—

14

SCREW TWELVE POIN

3/8-16X1 1/2 in.

199919

—

15

GASKET, WATER PUMP

206193

—

16

GASKET WATER PUMP

206455

—

17

SEAL O-RING

3007512

—

18

ADAPTER, O-RING

3640685

—

19

TAGJNSTRUCTION

3026930

—

20

SUPPORT, WATER PUMP

3634065

—

21

TUBE, WATER DRAIN

3650016

—

22

PUMP, WATER

4372338

—

23

CONNECTOR

3252438

—

24

SCREW TWELVE POINT CAP

1/2-13X2 in.

205393

—

25

SCREW TWELVE POINT CAP

1/2-13x3 3/4 in.

205357

—

26

WASHER PLAIN

205128

—

27

GASKET, RKR LEVER HOUSING

3630839

—

28

SCREW, HEXAGON HEAD CAP

3/8-16X4 1/2 in.

3628194

—

29

WASHER PLAIN

3/8 in.

3628902

—

29

WASHER PLAIN

3/8 in.

3628902

—

29

WASHER PLAIN

3/8 in.

3628902

—

30

SCREW, HEXAGON HEAD CAP

3/8-16X2 in.

3628196

—

31

GASKET, ROCKER LEVER COVER

4920076

—

32

COVER ROCKER LEVER

3010388

—

33

PLUG PIPE

3628604

—

34

COVER ROCKER LEVER

3038938

—

35

ASSY, ROCKER LEVER

3627895

—

36

SEAL O-RING

195952

—

37

SCREW, CAPTIVE WASHER

3/8-16X1 in.

3010595

—

37

SCREW, CAPTIVE WASHER

3/8-16X1 in.

3010595

—

38

SCREW HEXAGON HEAD CAP

5/16-18X1 1/4 in.

3178947

—

39

VALVE, PISTON COOLING

3179664

—

40

PLUG EXPANSION

3629168

—

41

ADAPTER O-RING

3631471

—

42

DRAINCOCK

3638583

—

43

PLUG, EXPANSION

3645841

—

44

WASHER PLAIN

3025485

—

45

BUSHING

3175805

—

46

CAP, MAIN BEARING

206588

—

47

CAP MAIN BEARING

206587

—

48

SCREW TWELVE POINT CAP

3/4-10X2 1/4 in.

205584

—

49

DOWEL RING

3176857

—

50

SCREW, HEX HEAD CAP

3628452

—

51

SEAL, TAMPER PROOF

3640775

—

52

BLOCK, CYLINDER

3648601

—

53

WASHER PLAIN

3/4 in.

139990

—

54

BUSHING

205230

—

55

DOWEL, PIN

4016364

—

56

PLUG, EXPANSION

4017621

—

57

TUBE, BREATHER

5/16 in.

S605

—

58

BEARINGTHRUST

130083

—

58

BEARINGTHRUST

130083

—

59

LEVERJDLER

3033853

—

60

SCREW, HEX HEAD CAP

5/8-18X3 3/4 in.

3177945

—

61

WASHER PLAIN

5/8 in.

3178457

—

62

GEARJDLER

3004683

—

63

GEAR IDLER

3628823

—

64

GEARJDLER

3628822

—

65

SCREW, HEXAGON HEAD CAP

3643905

—

66

WASHER, PLAIN

3643906

—

67

SHAFT, IDLER

3649522

—

68

Nameplate

105375

—

69

SHIM

3026312

—

70

SHIM

3026313

—

71

SCREW, HEXAGON HEAD CAP

S113

—

72

WASHER, LOCK

S608

—

73

PUMP, LUBRICATING OIL

3634648

—

74

BRACKET, LIFTING

205684

—

75

SCREW SOCKET HEAD

3/4-10X2 1/4 in.

206028

—

76

WASHER, PLAIN

3/4 in.

3629962

—

77

BEARING, THRUST

3000139

—

77

BEARING, THRUST

3000139

—

77

BEARING, THRUST

3000139

—

77

BEARING, THRUST

3000139

—

77

BEARING, THRUST

3000139

—

77

BEARING, THRUST

3000139

—

77

BEARING, THRUST

0, 010

3001708

—

77

BEARING, THRUST

0, 020

3001709

—

77

BEARING, THRUST

0, 030

3034075

—

77

BEARING, THRUST

0, 040

3034076

—

78

BEARING, MAIN

3650905

—

78

BEARING, MAIN

3650905

—

78

BEARING, MAIN

3650906

—

78

BEARING, MAIN

3650907

—

78

BEARING, MAIN

3650908

—

78

BEARING, MAIN

3650909

—

79

BEARING, MAIN

3650910

—

79

BEARING, MAIN

3650910

—

79

BEARING, MAIN

3650911

—

79

BEARING, MAIN

3650912

—

79

BEARING, MAIN

3650913

—

79

BEARING, MAIN

3650914

—

80

BEARING, MAIN

3650915

—

80

BEARING, MAIN

3650915

—

80

BEARING, MAIN

3650916

—

80

BEARING, MAIN

3650917

—

80

BEARING, MAIN

3650918

—

80

BEARING, MAIN

3650919

—

81

BEARING, MAIN

3650920

—

81

BEARING, MAIN

3650920

—

81

BEARING, MAIN

3650921

—

81

BEARING, MAIN

3650922

—

81

BEARING, MAIN

3650923

—

81

BEARING, MAIN

3650924

—

82

SUPPORT BEARING

3175281

—

83

SCREW, HEX HEAD CAP

3/8-16X3 1/2 in.

S105

—

84

SCREW, HEXAGON HEAD CAP

7/16-14X2 in.

106069

—

85

SUPPORT BEARING

3000138

—

86

SEAL, O RING

131026

—

87

SEAL, INJECTOR

207244

—

88

SEAL

3023095

—

89

SCREW

3070962

—

90

SCREW

3179021

—

91

CONNECTION OIL TRANSFER

3629341

—

92

DRIVE, ENGINE BARRING

3201740

—

93

SCREW, HEX HEAD CAP

5/8-11 X1 1/2 in.

S116

—

94

WASHER LOCK

5/8 in.

S603

—

95

SEAL, O-RING

3011076

—

95

SEAL, O-RING

3011076

—

96

INSERT LINER

JҐS0.1995^

3011884

—

96

INSERT LINER

JҐS0.2015^

3019150

—

96

INSERT LINER

JҐS0.2035^-f

3021148

—

97

SEAL О RING

3014668

—

97

SEAL О RING

3014668

—

98

LINER, CYLINDER

3022157

—

98

LINER, CYLINDER

3022157

—

99

SEAL, OIL

3081489

—

99

SEAL, OIL

3081489

—

100

COVER, CAMSHAFT

3628755

—

101

COVER CAMSHAFT

3628756

—

102

GASKET, CAM FOL HOUSING

3040721

—

103

SCREW, HEX HEAD CAP

3/8-16X2 1/2 in.

S126

—

104

SCREW, CAPTIVE WASHER CAP

3012473

—

105

GASKET, CAMSHAFT COVER

3040722

—

106

COVER, CAMSHAFT

207373

—

107

LOCK PLANE CAPSCREW

68908

—

108

Screw, Hexagon Head Cap

3/8-16X1 in.

S112

—

109

WASHER PLAIN

3/8 in.

127362

—

110

DOWEL RING

3002993

—

111

SCREW, TWELVE POINT CAP

3627945

—

112

PUSH ROD

3057139

—

113

LEVER, CAM FOLLOWER TLA

3642502

—

114

UNION, MALE

3634690

—

114

UNION, MALE

3634690

—

115

HOSE, FLEXIBLE

3638613

—

116

HOSE, FLEXIBLE

3638614

—

117

SCREW HEXAGON HEAD CAP

3349015

—

118

PLUG, PIPE

3628608

—

119

CONNECTION WATER INLET

3632825

—

120

WASHER PLAIN

3897359

—

121

BRACKET WATER TUBE

3897365

—

122

WASHER PLAIN

S610A

—

123

Screw, Drive

3/16 in.

S2286

—

124

LEVEL, PULL

3017961

—

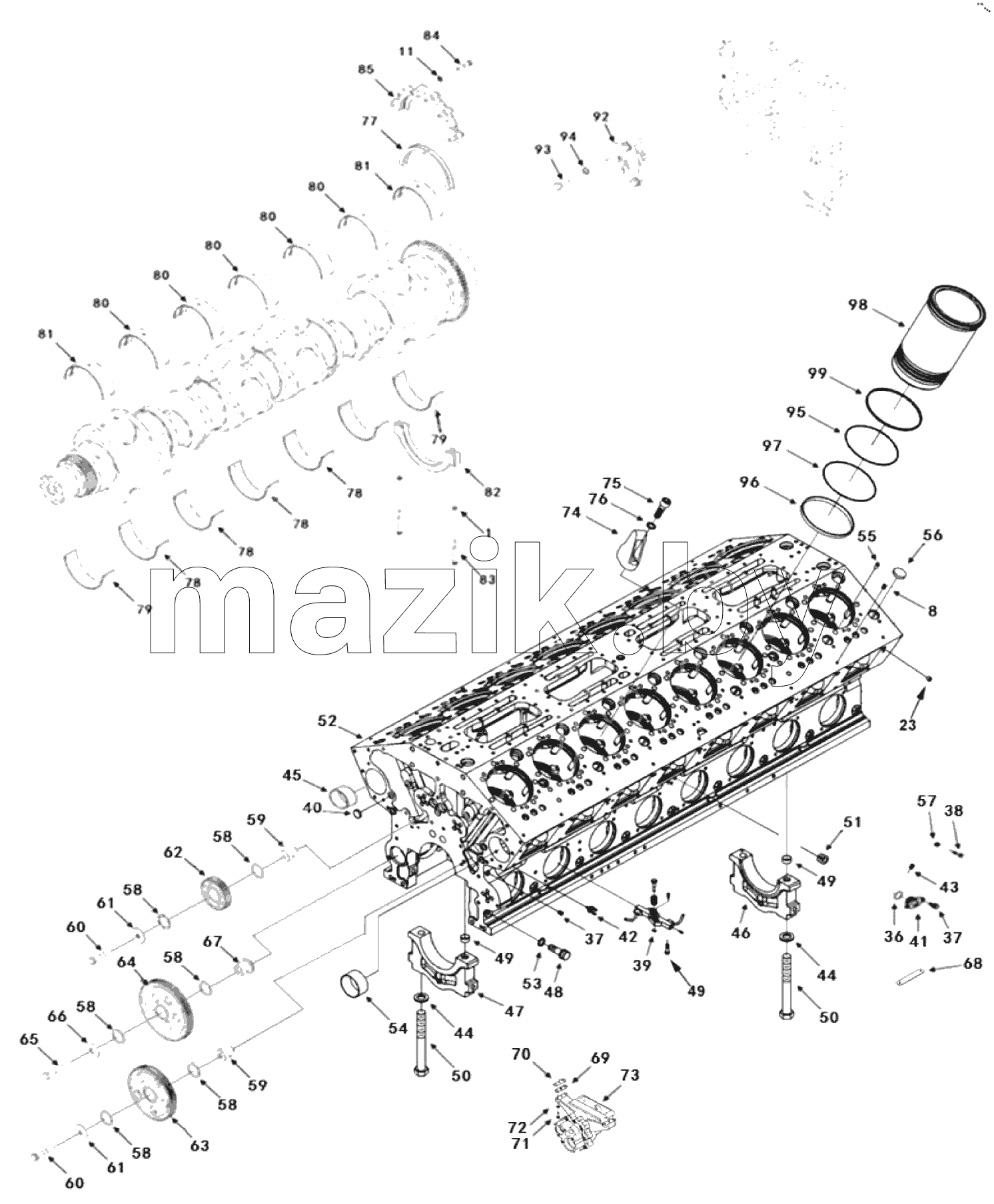

Каталог запасных частей к технике: Cummins K50-M. PARTS, BASE BP613
