Radiator, Magnum 280 and Magnum 310

REF

—

2

HOSE

Coolant

87381277

—

3

TUBE ASSY

Radiator

87455330

—

6

HOSE

Radiator

433405A1

—

7

CLAMP

HOSE, 2.25/3.125 HD Worm, W/liner,

214-3248

—

8

Engine

Coolant Outlet, Inc. 21

87733724

—

9

BOLT

M8x20, 8.8

87403515

—

10

RESERVOIR

Deaeration Tank

87413715

—

11

CAP

RADIATOR, 15 psi

A170241

—

12

BOLT

Hex Flg, M8x16, 8.8,

555-1

—

14

BOLT

Hex Flg, M12x25, 8.8,

844-12025

—

15

CLAMP

87445732

—

16

TUBE ASSY

87430751

—

17

GASKET

J945603

—

18

RESERVOIR

COOLANT EXPNSN,

L127093

—

19

CAP

FILLER,

238903A1

—

20

BRACKET

Deaeration Tank

87339308

—

21

Protective

87733645

—

25

ELBOW

90e, 1/4dm Hosex1/8dm NPTF Beaded,

217-130

—

26

HOSE

6.4 IDx1490 mm, 1/4 IDx58-21/32dm, Cut From 382997C2

87442539

—

27

HOSE

6.4 IDx1885 mm, 1/4 IDx70-1/2dm, Cut From 382997C2

87525458

—

28

FITTING

1/4dm Hosex1/4dm NPTF Beaded,

217-154

—

29

CLAMP

HOSE, 0.5dm

87589798

—

30

HOSE

Deaeration Tank to Engine, 249 mm, 9.8dm, Cut From 429211A1

87395776

—

32

CLAMP

HOSE, #12, 0.69/1.25 Type F Worm,

214-1412

—

33

HOSE

Cut From 382997C2

87338147

—

34

HOSE

242070A1

—

35

CLAMP

HOSE, #8, 1/2dm, Spring,

214-1308

—

36

ELBOW

45e, 1 1/1dm6-12, 37ex3/4dm-14, NPTF,

218-536

—

37

BRACKET

Coolant Recovery Bottle

87381548

—

38

TUBE

87395778

—

39

BOLT

Hex Flg, M8x60, 8.8,

844-8060

—

40

CLAMP

118576A1

—

41

PLATE

Clamp

1347127C1

—

42

NUT

M8x1.25, Flg, Cl 8,

825-2408

—

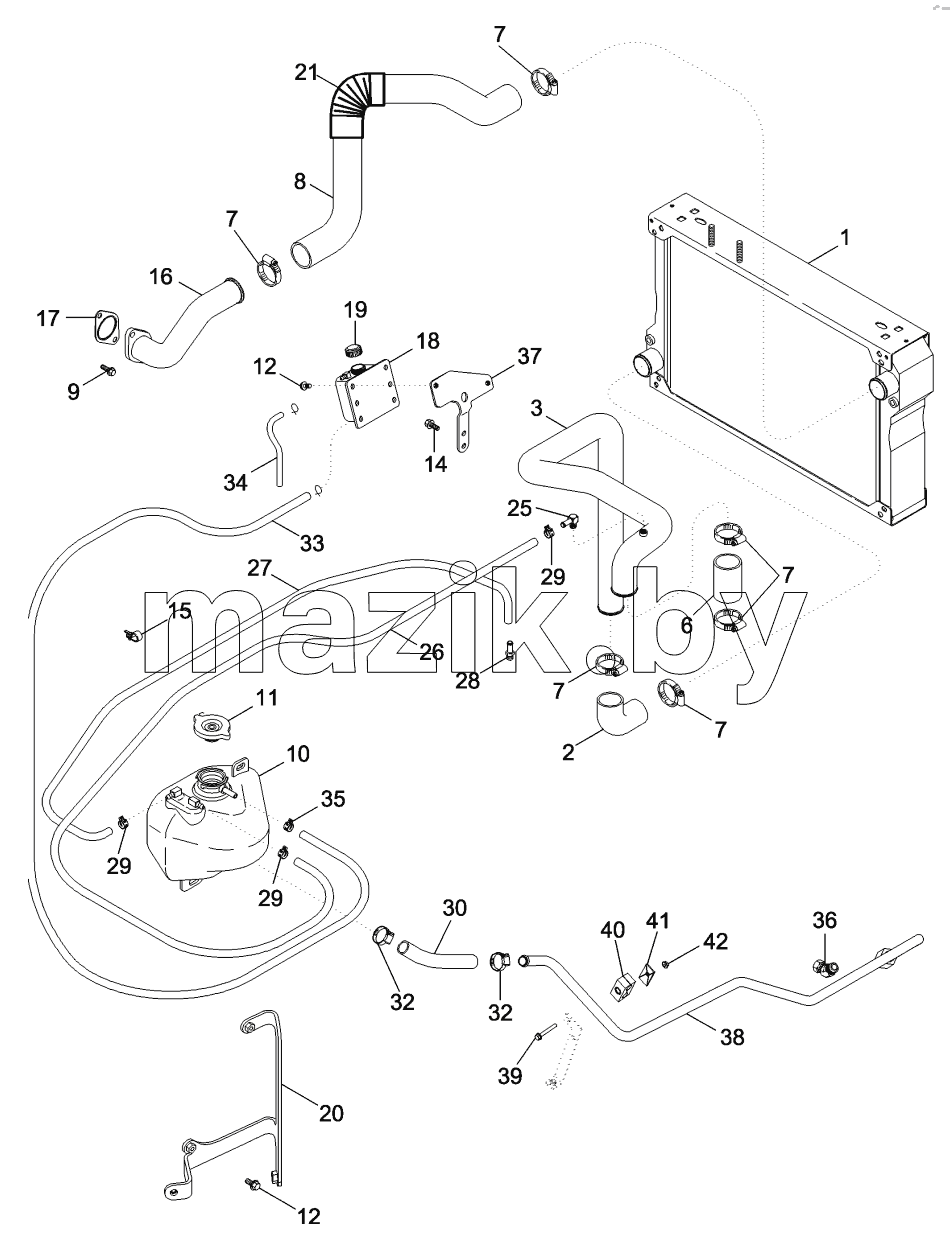

Каталог запасных частей к технике: Cummins 310. DEAERATION SYSTEM
