18

FLAT HEAD SCREW

5120.053.00

—

19

SEAT RAIL

1902.237.10

—

20

CENTER CONSOLE RIGHT

1501218.90

—

21

SERVICE HEAD

1501.218.92

—

171

TOOTHED WASHER

TOOTHEDWASHER

—

201

CENTER CONSOLE LEFT

1501.218.91

—

1

GAS-FILLED SPRING DEVICE CPL.

3.09.50.505

GAS-FILLEDSPRINGDEVICECPL.

—

1.1

GAS-FILLED SPRING DEVICE CPL.

1.11.04.105, FB 28-600 N

GAS-FILLEDSPRINGDEVICECPL.

—

1.2

FORK END ABOVE

1.08.02.810, 10x20

FORKENDABOVE

—

1.3

HEXAGON NUT

1.07.17.030DIN 936, M10x1

HEXAGONNUT

—

1.4

FORK END BOTTOM

1.08.02.800, 8x24

FORKENDBOTTOM

—

1.5

THREADED PIN

1.07.03.800DIN 551. M8x20 ZN

THREADEDPIN

—

1.6

GAS-FILLED SPRING DEVICE ABOVE

1.04.04.180

GAS-FILLEDSPRINGDEVICEABOVE

—

1.7

E-S-BOLT

1.08.02.850

E-S-BOLT

—

1.8

CLAMPING SLEEVE

1.07.36.40DIN 7346, 10x36

CLAMPINGSLEEVE

—

1.9

CLAMPING SLEEVE

1.07.36.360DIN 7346, 8x36

CLAMPINGSLEEVE

—

1.10

BUSHING

1.08.02.570

BUSHING

—

2

ZB-ARM REST RAE.

3.02.01.441/440

ZB-ARMRESTRAE.

—

2.1

ARM REST LEFT BOTTOM PART

1.05.01.205

ARMRESTLEFTBOTTOMPART

—

2.2

ARM REST RIGHT BOTTOM PART

1.05.01.204

ARMRESTRIGHTBOTTOMPART

—

2.3

ARM REST LEFT TOP PART

1.05.01.201

ARMRESTLEFTTOPPART

—

2.4

ARM REST RIGHT TOP PART

1.05.01700

ARMRESTRIGHTTOPPART

—

2.5

ARM REST

1.13.03.450

ARMREST

—

3

TIP SWITCH RELEASE F.,R°, "R+S", CPL.

3.39.51.300

SWITCHRELEASE

—

3.1

HOUSING

1.04.04.010

HOUSING

—

3.2

TIP SWITCH

1.04.04.020

TIPSWITCH

—

3.3

CAP SHORT W. ARROW

1.04.04.050

CAPSHORTW.ARROW

—

3.4

BLINKING TIP SWITCH

1.04.04.030

BLINKINGTIPSWITCH

—

3.5

PRESSURE SPRING

1.09.01.400, D-117/0

PRESSURESPRING

—

4

ASHTRAY

1.11.07.450

ASHTRAY

—

5

FRAME NET

1.11.07.130, 858.000.7

FRAMENET

—

5.1

NET PIECE

1.11.07.131.858.002.5

NETPIECE

—

5.2

COVERING NET

1.11.07.132, 858.001.5

COVERINGNET

—

6

FOLDING TABLE

3.35.61.200

FOLDINGTABLE

—

6.1

FOLDING TABLE

1.04.05.500

FOLDINGTABLE

—

6.2

TABLE LINKAGE RIGHT

1.04.04.240 1.07.04.090

TABLELINKAGERIGHT

—

6.3

TABLE LINKAGE LEFT

1.04.04240 1.07.04.090

TABLELINKAGELEFT

—

6.4

THREADED PIN

1.07.04.090DIN 915, M4x12 ZN

THREADEDPIN

—

6.5

FLAT. HEAD SCREW

1.07.13.050DIN7991, M6x20 8,8N MICRO

FLAT.HEADSCREW

—

6.6

DIAPHRAGM SPRING

1.07.29.040DIN 2093, 20x10.2x1.1

DIAPHRAGMSPRING

—

6.7

ARTICULATED SCREW

1.08.02.690, SW 17x37,5 С 35 ZN

ARTICULATEDSCREW

—

6.8

FRICTION BEARING

1.04.04.240, GSM-1315-10

FRICTIONBEARING

—

6.9

U- DISC

1.07.22.050DIN 125, 10,5 ZN

U-DISC

—

6.10

BUSHING

1.08.02.560

BUSHING

—

6.11

DIAPHRAGM SPRING

1.07.29.200DIN 2093, 31.5x16,3x1.25

DIAPHRAGMSPRING

—

6.12

SECURING NUT

1.07.18.100

SECURINGNUT

—

6.13

BUSHING

1.08.02.540, d.15,95x9,2 ZN

BUSHING

—

6.14

NUT

1.07.19.110, M6 W 196 ST ZN

NUT

—

6.15

BUSHING

1.08.02.670, d.16x14ZN

BUSHING

—

6.16

CYUNDER SCREW

1.07.12.035DIN 7984, M6x20ZN

CYUNDERSCREW

—

6.17

SECURING

1.07.027.009

SECURING

—

6.18

TABLE ARTICULATED SCREW

1.08.02.692

TABLEARTICULATEDSCREW

—

6.19

DISC

1.04.04.145

DISC

—

7

ROTATION STRIKER CPL.

3.07.61.500

ROTATIONSTRIKERCPL.

—

7.1

ROTATION STRIKER

1.04.04.220

ROTATIONSTRIKER

—

7.2

SLEEVE

1.04.04.230

SLEEVE

—

7.3

GUIDE

1.04.04.235

GUIDE

—

7.4

PRESSURE SPRING

1.09.01.400, D-117/0

PRESSURESPRING

—

7.5

FLAT HEAD SCREW

1.07.12.980DIN 7991.M3x12 8,8

FLATHEADSCREW

—

8

FOOT REST CPL. INSTALLED

3.11.00.300

FOOTRESTCPL.INSTALLED

—

8.1

FOOT REST HOUSING RIGHT

1.05.10.202

FOOTRESTHOUSINGRIGHT

—

8.2

FOOT REST HOUSING LEFT

1.05.10.201

FOOTRESTHOUSINGLEFT

—

8.3

FOOT REST LEVER

1.05.10.200

FOOTRESTLEVER

—

8.4

FOOT REST

1.04.01.850

FOOTREST

—

8.5

RATCHET CPL.

3.33.01.420

RATCHETCPL.

—

8.6

DISTANT SLEEVE

1.08.03.260

DISTANTSLEEVE

—

8.7

LEAF SPRING

1.09.01.250, 10x38

LEAFSPRING

—

8.8

HEXAGONSCREW

1.07.04.400DIN 931.M8x55ZN

HEXAGONSCREW

—

8.9

DISTANT DISC

1.04.01.853

DISTANTDISC

—

8.10

SELF- CUTTING SCREW

1.07.07.010

SELF-CUTTINGSCREW

—

8.11

SECURING NUT

1.07.18.060

SECURINGNUT

—

8.12

U- DISC

1.07.22.040DIN 125

U-DISC

—

8.13

STOP SCREW

1.08.03.200, M8x20 8.8ZN

STOPSCREW

—

8.14

CAP NUT

1.07.19.030DIN 986, M8ZN8.8

CAPNUT

—

9

REFUSE CONTAINER COMPLETE

FA NEOPLAN

REFUSECONTAINERCOMPLETE

—

10

BACK CUSHION PAN

3.31.13.985

BACKCUSHIONPAN

—

10.1

BACK MOULDING

2.32.63.105

BACKMOULDING

—

10.2

BACK PAN W. ARMREST RIGHT

2.31.62.500

BACKPANW.ARMRESTRIGHT

—

10.3

BACK PAN W. ARMREST LEFT

2.31.62.501

BACKPANW.ARMRESTLEFT

—

10.4

BACK PAN WITHOUT ARMREST RIGHT

2.31.62.502

BACKPANWITHOUTARMRESTRIGHT

—

10.5

BACK PAN WITHOUT ARMREST LEFT

2.31.62.503

BACKPANWITHOUTARMRESTLEFT

—

10.6

washer

1.07.07.600DIN 7500, M6x10

WASHER

—

10.7

GRAB HANDLE LEFT

1.05.01.563

GRABHANDLELEFT

—

10.8

GRAB HANDLE RIGHT

1.05.01.562

GRABHANDLERIGHT

—

11

SEAT CUSHION MOULD. GANGWAY LEFT

2.33.63.102

SEATCUSHIONMOULD.GANGWAYLEFT

—

11.1

SEAT CUSHION MOULD. GANGWAY RIGHT

2.33.63.100

SEATCUSHIONMOULD.GANGWAYRIGHT

—

11.3

SEAT CUSHION MOULD. WALLSIDE LEFT

2.33.63.101

SEATCUSHIONMOULD.WALLSIDELEFT

—

11.4

SEAT CUSHION MOULD. WALLSIDE RIGHT

2.33.63.103

SEATCUSHIONMOULD.WALLSIDERIGHT

—

11.5

SEAT CUSHION MOULD.

2.33.63723

SEATCUSHIONMOULD.

—

11.6

SEAT CUSHION PAN W. PLUG PIN-TYPE LOCK

1.04.05.000

SEATCUSHIONPANW.PLUGPIN-TYPELOCK

—

11.7

PLUG PIN- TYPE LOCK

1.04.01.640

PLUGPIN-TYPELOCK

—

12

WALL ARM-REST

3.42.01.200/200

WALLARM-REST

—

12.1

ARM SUPPORT

1.13.03.451

ARMSUPPORT

—

13

SIDE MOVEMENT

3.33.50.105

SIDEMOVEMENT

—

14.1

SAFETY BEET LEFT CPL.

3.38.61.11

SAFETYBEETLEFTCPL.

—

14.2

SAFETY BEET RIGHT CPL.

3.86.61.110

SAFETYBEETRIGHTCPL.

—

15

SEAT RAIL

1003/98

SEATRAIL

—

16

COVER TREAD

10512-2500

COVERTREAD

—

17

washer

LIEFERUMF. SITZGESTELL

WASHER

—

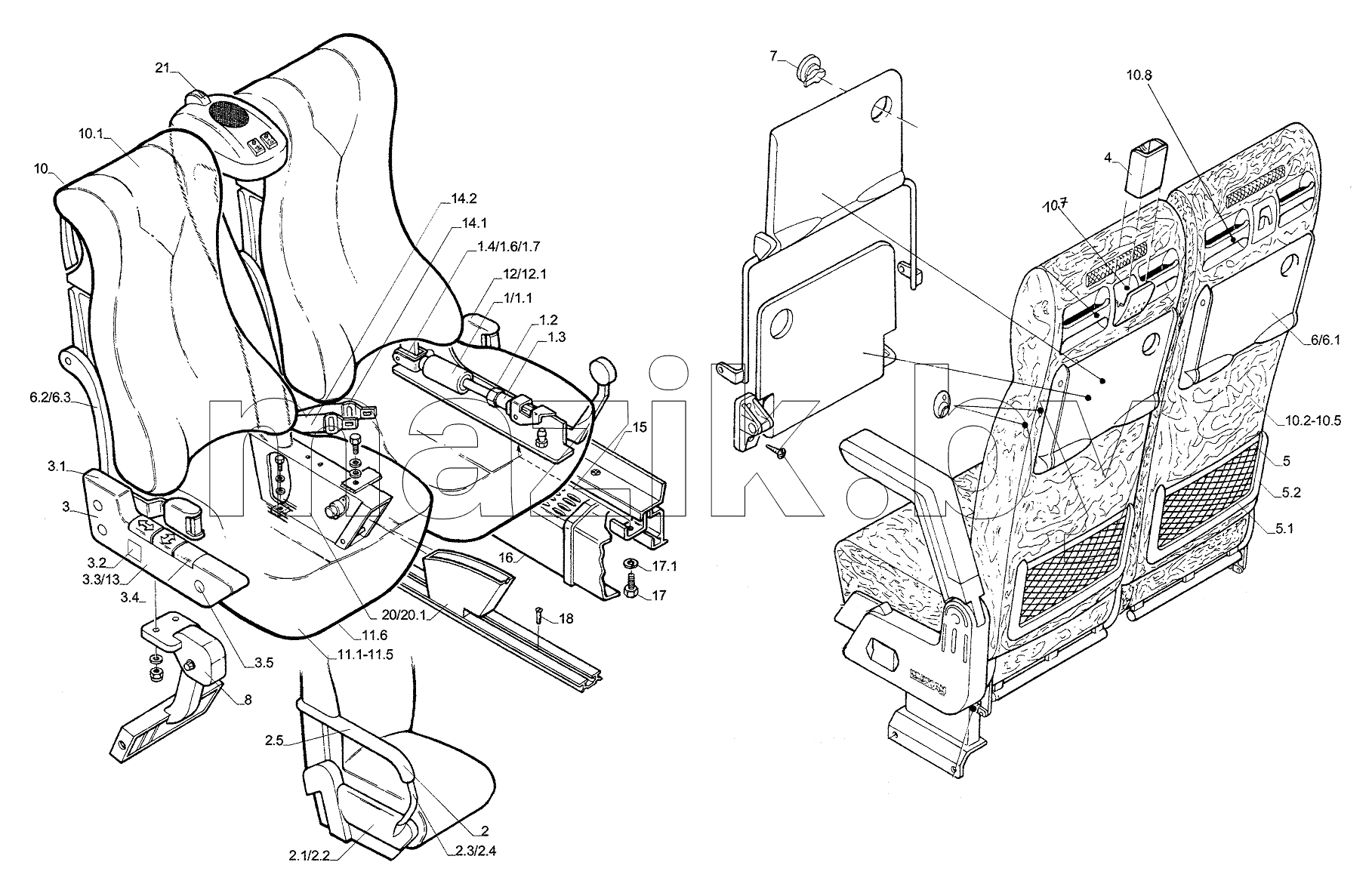

Каталог запасных частей к технике: Neoplan N 516 SHD (MB) E2. PASSENGERS SEAT
