1

Fuel tank assembly, 260L, 1380x350x705, plastic

Contains 3-5

211100465

—

2

Oil level sensor, VT-RG917B43II, 690mm

238300311

—

3

Oil return pan,211100465

211000346

—

4

Oil suction pan,211100465

211000345

—

5

Fuel tank cap

211000109

—

6

Drawstring, thread-I-shaped, 1050

380200148

—

7

Drawstring, thread-I-shaped, 1070

380200009

—

8

Fuel tank gasket, 653

329900016

—

9

Body frame welding assembly-chassis, 6127BY/CY full load-bearing, fuel tank protection

251203192

—

9-1

Straight rod, 50x40x2.0, Q345 (slit), 357

794200357

—

9-2

Diagonal brace, 50x40x2.0, Q345B (with seams), L=408

701026375

—

9-3

Bracket-fuel tank, 260L fuel tank protection bracket

311200673

—

10

Accelerator pedal - electronic, equipped with Weichai and Xichai BOSCH high-pressure common rail engines, floor type

211400130

—

299025336

Fuel fine filter

Engine straps, including 11-12

299025336

—

11

Fuel filter seat

299022160

—

12

Fuel fine filter element

299025937

—

299026514

Fuel primary filter

Engine straps, including 13-16

299026514

—

13

Fuel filter seat

299026515

—

14

Fuel coarse filter element

299025938

—

15

Sealing ring

299016101

—

16

Water cup assembly

299016111

—

299032868

Fuel Shuihanbao, WP5.180E41, DHP05K0435x01

17-21

299032868

—

17

Electric oil transfer pump assembly

299032869

—

18

Fuel coarse filter element

299025935

—

19

Sealing ring

299016101

—

20

Water cup assembly

299022249

—

21

Electric fuel pump controller

299032871

—

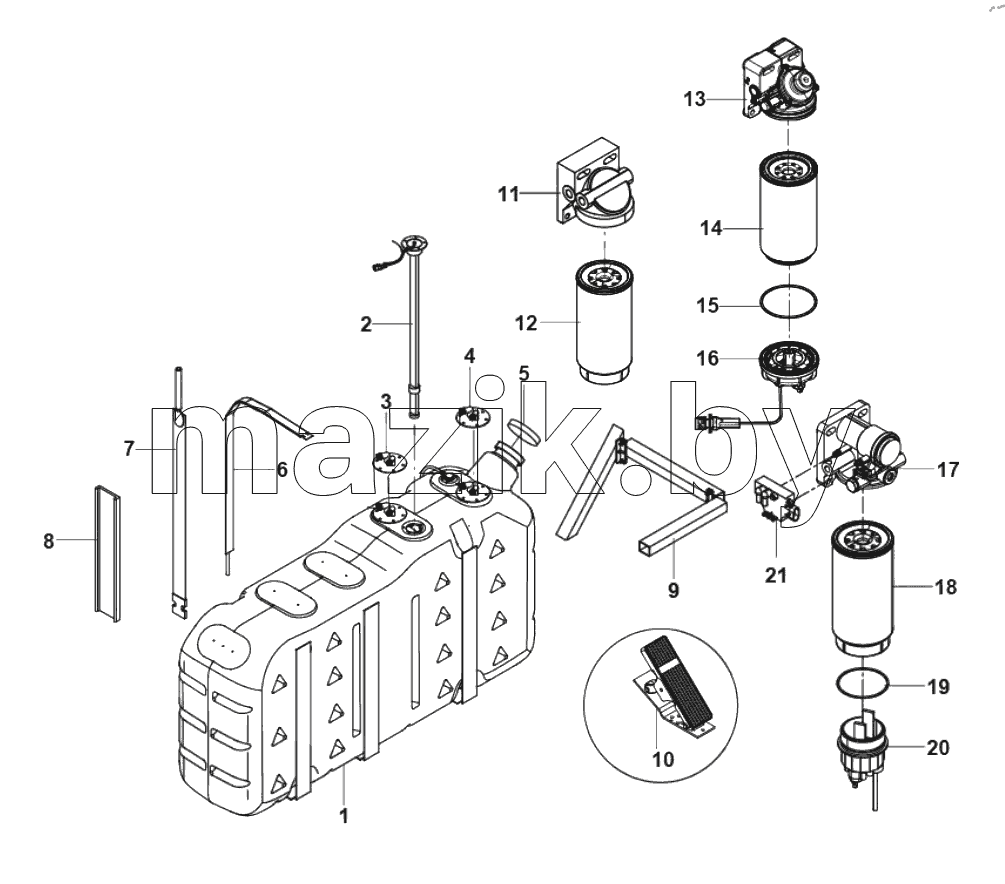

Каталог запасных частей к технике: King Long XMQ-6127. Oil supply system
