230000779

Front right spring brake air chamber assembly

Installed on the left side of the bridge assembly

230000779

—

230002079

Right disc brake assembly

230002079

—

230000899

Adjustment shim-steering knuckle

The left and right sides can be optionally installed as needed, and up to 2 pieces can be installed on each side.

230000899

—

230000900

Adjustment shim-steering knuckle

The left and right sides can be optionally installed as needed, and up to 2 pieces can be installed on each side.

230000900

—

230000901

Adjustment shim-steering knuckle

The left and right sides can be optionally installed as needed, and up to 2 pieces can be installed on each side.

230000901

—

230000939

Locking screw-right steering knuckle arm

230000939

—

230000436

Right steering knuckle arm

230000436

—

230002632

Front right disc brake base plate

230002632

—

230005580

Right steering knuckle assembly

230005580

—

230000954

Grease mouth

230000954

—

1

Front axle

232000007

—

2

Tie rod assembly

230000598

—

3

Hexagon head bolts

232000006

—

4

Adjustment shim-steering knuckle

The left and right sides can be optionally installed as needed, and up to 2 pieces can be installed on each side.

230000898

—

5

Fasten the screw nut

230000919

—

6

Lock pin I

Long locking pin, inside

230000933

—

7

Fasten the screw nut

230000919

—

8

Thrust cylindrical roller bearings

230000952

—

9

Lock Pin II

Short locking pin, outside

230000932

—

10

Positioning pin-thrust rod support

230001110

—

11

Thrust rod support

230000904

—

12

Oil pipe

230000896

—

13

Upper dust cover

230000910

—

14

Oil seal-king pin

230003917

—

15

Left steering knuckle assembly

230005579

—

16

Bushing

230000928

—

17

Positioning pin

For connecting the brake base plate and steering knuckle positioning

230003259

—

18

Hexagonal flange bolts

For connecting disc brake assembly and brake base plate

230000914

—

19

Front left disc brake base plate

230002638

—

20

Hexagon socket head screws

For connecting brake base plate and steering knuckle

230004819

—

21

Locking bolt

For connecting disc brake assembly and brake base plate

230000915

—

22

230002084

—

23

Stamped outer ring needle roller bearings

none

Stamped outer ring needle roller bearings

—

24

Gasket

1 piece each for top, bottom, left and right, 4 pieces in total

230000937

—

25

Lower dust cover

230000936

—

26

Spring washer

4 pieces each on the top, bottom, left and right, 16 pieces in total

540308000

—

27

Hexagon head bolts

4 pieces each on the top, bottom, left and right, 16 pieces in total

230001067

—

28

Grease mouth

230000954

—

29

Hexagonal flange bolts

Used to connect the brake base plate and steering knuckle, penetrate from the back of the steering knuckle

230000890

—

30

Hexagonal thin nut

535116000

—

31

Locking bolt

(steering limit)

230000909

—

32

Sensor bush

224001746

—

33

Clogged

230000930

—

34

Sensor

230003274

—

35

Left steering knuckle arm

230000435

—

36

Steering arm

230000911

—

37

Locking screw - left steering knuckle arm

Also install the steering arm

230000897

—

38

Wire lock thread

230001108

—

39

Rubber sleeve

For fixing ABS sensor wire

224001729

—

40

Single tube clip

For fixing ABS sensor wire

224002248

—

41

Spring washer

For fixing ABS sensor wire

540308000

—

42

Bolt

For fixing ABS sensor wire

515008120

—

43

Wheel nuts

Loose accessories with the bridge

224004079

—

44

Hexagonal flange bolts

299012857

—

45

Front hubcap

During installation, apply Loctite 574 sealant to the joint surface.

230003926

—

46

Lock nut-steering knuckle

Riveting and locking

230003925

—

47

Anti-friction plate-steering knuckle

230003924

—

48

Front hub brake disc assembly

230005235

—

49

Type 1 hexagonal nut

For fastening brake chamber

534116000

—

50

Heavy-duty spring washer

For fastening brake chamber

540316000

—

51

Left disc brake assembly

230002077

—

52

Front left spring brake air chamber assembly

Installed on the right side of the bridge assembly

230000778

—

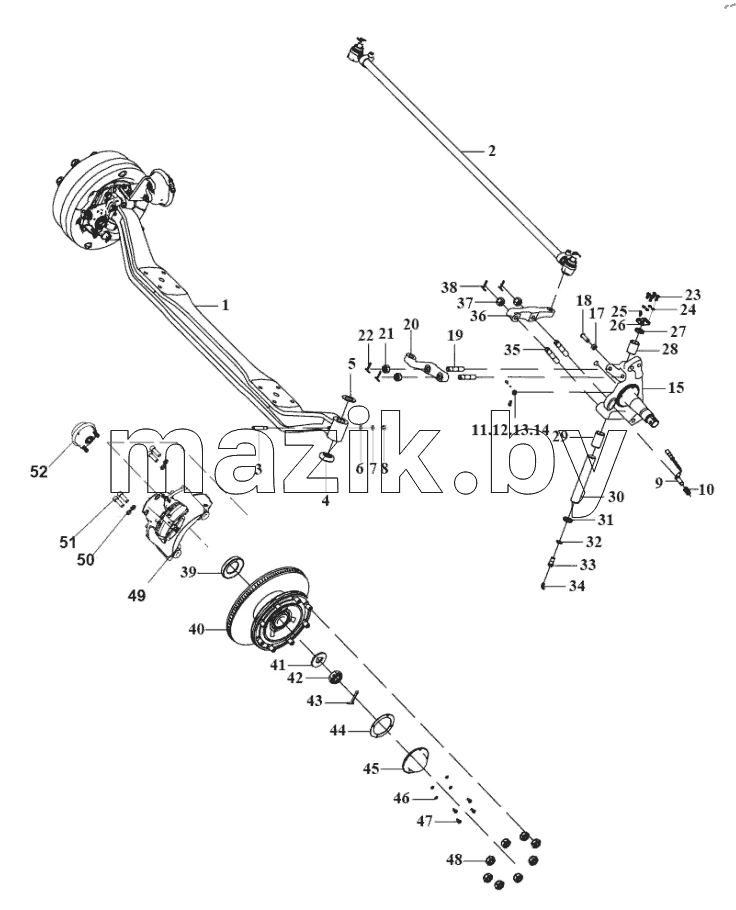

Каталог запасных частей к технике: King Long XMQ-6106. Assembly of bridge assembly components
