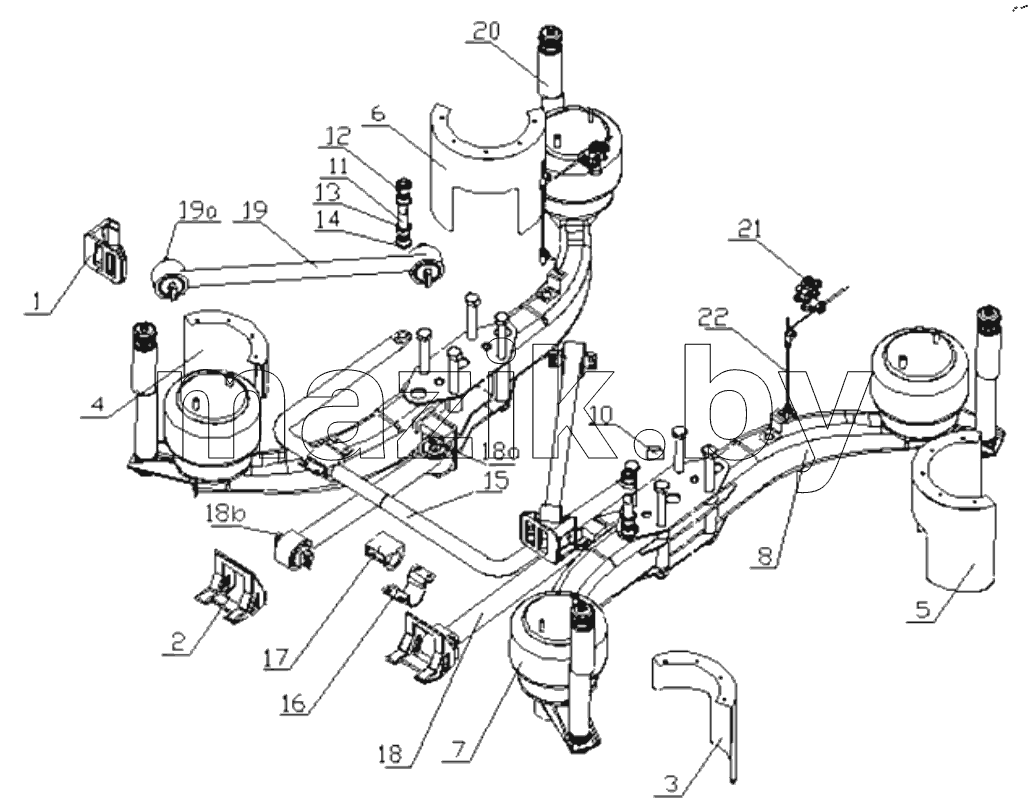

Каталог запасных частей к технике: Higer KLQ6129TQL-LVR. REAR SUSPENSION SYSTEM

← FRONT SUSPENSION SYSTEM SUSPENSION ELECTRICAL SYSTEM →

№ п/п

Название по каталогу

Кат. номер

Наименование на сайте

Ост.

Цена, BYN

29V8X-04000

Rear air suspension assy

29V8X-04000

—

V-type thrust rod bearing

29LRP-03527

—

Thrust rod bearing

29LRP-03519

—

Air bag cover assembly, LH

29V8X-04501

—

Air bag cover assembly, RH

29V8X-04502

—

Air bag cover assembly, LH

29V8X-04503

—

Air bag cover assembly, RH

29V8X-04504

—

Air spring assy

29VM1-04503

—

Left C-beam assembly

29V8X-04505

—

C right beam assembly

29V8X-04506

—

Dual diameter dowel pin

29NT2-03511

—

Boom

29LRP-03520

—

Rubber gasket

29VM1-04508

—

Washer, concave

29VM1-04507

—

Concave washer

29V8X-04507

—

Rear stabilizer bar

29VM1-08501

—

Stabilizer splint

29PE2-08503

—

Rubber support

29PE2-08504

—

Twist propelling rod assy

29V8X-04508

—

18a

Ball Pin

29SE4-03552

—

18b

Ball joint

29V8X-04509

—

Pitch thrust rod assy

29VM1-04513

—

19a

Ball joint

29V8X-04509

—

Shock absorber

29ERL-03503

—

Height valve assembly

29SB1-43010

—

Height adjustment lever assembly

29VM1-04514

—

−

40%

18a

18b

19a
