17V4V-00530

Input, counter, reverse shaft assy

17V4V-00530

—

3

Input shaft

17V5C-01610

—

4

Retainer ring

17UF3-01613

—

6

Circlip

17UF3-01611

—

10

Conical roller bearing

17E02-00505

—

11

Collecting ring

17V5G-01611

—

18

Adjusting washer

1.55

17UF3-01702

—

18

Adjusting washer

1.95

17UF3-01681

—

18

Adjusting washer

1.90

17UF3-01680

—

18

Adjusting washer

1.85

17UF3-01708

—

18

Adjusting washer

1.80

17UF3-01707

—

18

Adjusting washer

1.75

17UF3-01706

—

18

Adjusting washer

1.70

17UF3-01705

—

18

Adjusting washer

1.65

17UF3-01704

—

18

Adjusting washer

1.60

17UF3-01703

—

18

Adjusting washer

1.50

17UF3-01701

—

18

Adjusting washer

1.40

17UF3-01698

—

18

Adjusting washer

17UF3-01614

—

18

Adjusting washer

1.00

17UF3-01690

—

18

Adjusting washer

1.05

17UF3-01691

—

18

Adjusting washer

1.10

17UF3-01692

—

18

Adjusting washer

1.15

17UF3-01693

—

18

Adjusting washer

1.20

17UF3-01694

—

18

Adjusting washer

1.25

17UF3-01695

—

18

Adjusting washer

1.30

17UF3-01696

—

18

Adjusting washer

1.35

17UF3-01697

—

18

Adjusting washer

1.45

17UF3-01699

—

19

Gasket

17V2V-01521

—

20

Oil seal

17UF3-01615

—

30

Front cover

17V2V-01522

—

31

Oil pan

17V2V-01523

—

33

Bolt

17V48-01603

—

35

Roller bearing

17SE4-01509

—

36

Countershaft

17E02-01850

—

40

3/4 gear, countershaft

17E02-01852

—

43

6th gear,countershaft

17V6Q-00522

—

44

Constant mesh gear, countershaft

17E02-01810

—

47

Tapered roller bearing

Tapered roller bearings 50.8x100x35

17T22-00030*05013

—

49

Axial spring stalls circle

Elastic gear ring for shaft 50x2.3

17V48-01827

—

49

Axial spring stalls circle

Elastic gear ring for shaft 50x2.4

17V48-01826

—

49

Axial spring stalls circle

Elastic gear ring for shaft 50x2.5

17E02-01713

—

49

Axial spring stalls circle

Elastic gear ring for shaft 50x2.6

17V48-01824

—

49

Axial spring stalls circle

Elastic gear ring for shaft 50x2.7

17V48-01823

—

49

Axial spring stalls circle

Elastic gear ring for shaft 50x2.8

17V48-01822

—

49

Axial spring stalls circle

Elastic gear ring for shaft 50x2.9

17V48-01821

—

49

Snap spring

Bracket bearing inner circlip 50x3.0

0630531065

—

49

Shim

Elastic gear ring for shaft (optional one piece)

17UF3-01810

—

50

Adjusting shim

Adjustment gasket A=2.85

17E02-01817

—

50

Adjusting shim

Adjustment gasket A=2.80

17E02-01818

—

50

Adjusting shim

Adjustment gasket A=2.75

17E02-01819

—

50

Adjusting shim

Adjustment gasket A=2.70

17E02-01711

—

50

Adjusting shim

Adjustment gasket A=2.65

17E02-01821

—

50

Adjusting shim

Adjustment gasket A=2.60

17E02-01822

—

50

Adjusting shim

Adjustment gasket A=2.55

17E02-01823

—

50

Adjusting shim

Adjustment gasket A=2.50

17E02-01824

—

50

Adjusting shim

Adjustment gasket A=2.45

17E02-01825

—

50

Adjusting shim

Adjustment gasket A=2.40

17E02-01826

—

50

Adjusting shim

Adjustment gasket A=2.35

17E02-01827

—

50

Adjusting shim

Adjustment gasket A=2.30

17E02-01828

—

50

Adjusting shim

Adjustment gasket A=2.25

17E02-01829

—

50

Adjusting shim

Adjustment gasket A=2.20

17E02-01830

—

50

Adjusting shim

Adjustment gasket A=2.15

17E02-01831

—

50

Adjusting shim

Adjustment gasket A=2.10

17E02-01832

—

50

Adjusting shim

Adjustment gasket A=2.05

17E02-01833

—

50

Adjusting shim

Adjustment gasket A=2.00

17E02-01834

—

50

Adjusting shim

Adjustment gasket A=1.95

17E02-01835

—

50

Adjusting shim

Adjustment gasket A=1.90

17E02-01836

—

50

Adjusting washer

Adjust washer thickness 4.0

17E02-01794

—

50

Adjusting shim

Adjustment gasket A=1.85

17E02-01837

—

50

Adjusting washer

Adjustment gasket A=2.95

17E02-01815

—

50

Adjusting shim

Optional adjustment gasket

17V48-01820

—

50

Adjusting washer

Adjust washer thickness 3.95

17E02-01795

—

50

Adjusting washer

Adjust washer thickness 3.9

17E02-01796

—

50

Adjusting washer

Adjust washer thickness 3.85

17E02-01797

—

50

Adjusting washer

Adjust washer thickness 3.8

17E02-01798

—

50

Adjusting washer

Adjust washer thickness 3.70

17E02-01799

—

50

Adjusting washer

Adjust washer thickness 3.65

17E02-01801

—

50

Adjusting shim

Adjustment gasket A=3.6

17E02-01802

—

50

Adjusting shim

Adjustment gasket A=3.55

17E02-01803

—

50

Adjusting shim

Adjustment gasket A=3.50

17E02-01804

—

50

Adjusting shim

Adjustment gasket A=3.40

17E02-01806

—

50

Adjusting washer

Adjustment gasket A=2.90

17E02-01816

—

50

Adjusting washer

Adjustment gasket A=3.00

17E02-01814

—

50

Adjusting shim

Adjustment gasket A=3.05

17E02-01813

—

50

Adjusting shim

Adjustment gasket A=3.10

17E02-01812

—

50

Adjusting shim

Adjustment gasket A=3.15

17E02-01811

—

50

Adjusting shim

Adjustment gasket A=3.20

17E02-01710

—

50

Adjusting shim

Adjustment gasket A=3.25

17E02-01809

—

50

Adjusting shim

Adjustment gasket A=3.30

17E02-01808

—

50

Adjusting shim

Adjustment gasket A=3.35

17E02-01807

—

50

Adjusting shim

Adjustment gasket A=3.45

17E02-01805

—

54

Gasket - oil sump

17SE4-01537

—

55

Countershaft front cover

17E01-01549

—

60

Reverse shaft

17V48-01951

—

62

Needle bearing, reverse gear

45x53x21

17T22-00030*05024

—

63

Spacer, needle bearing

17T01-01965

—

64

Reverse gear

17E02-01975

—

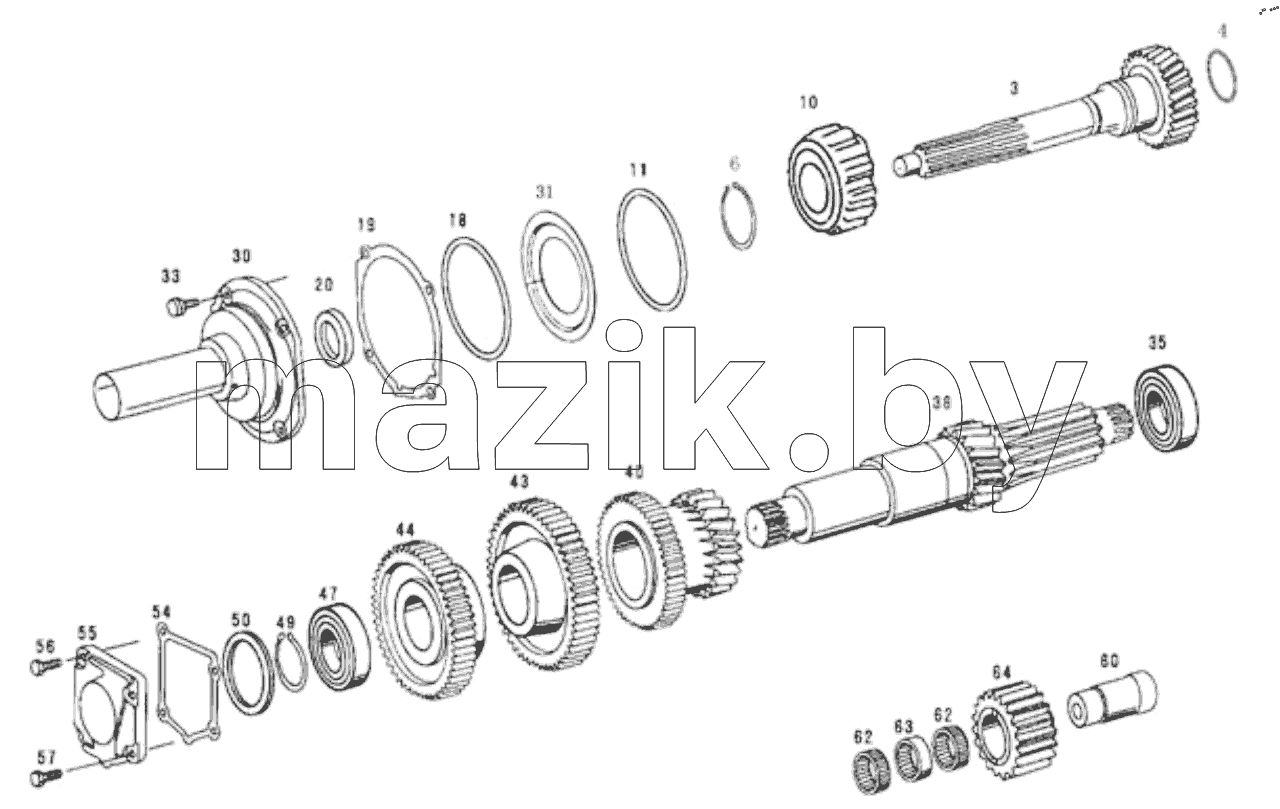

Каталог запасных частей к технике: Higer KLQ6129. INPUT, COUNTER, REVERSESHAFT ASSY
